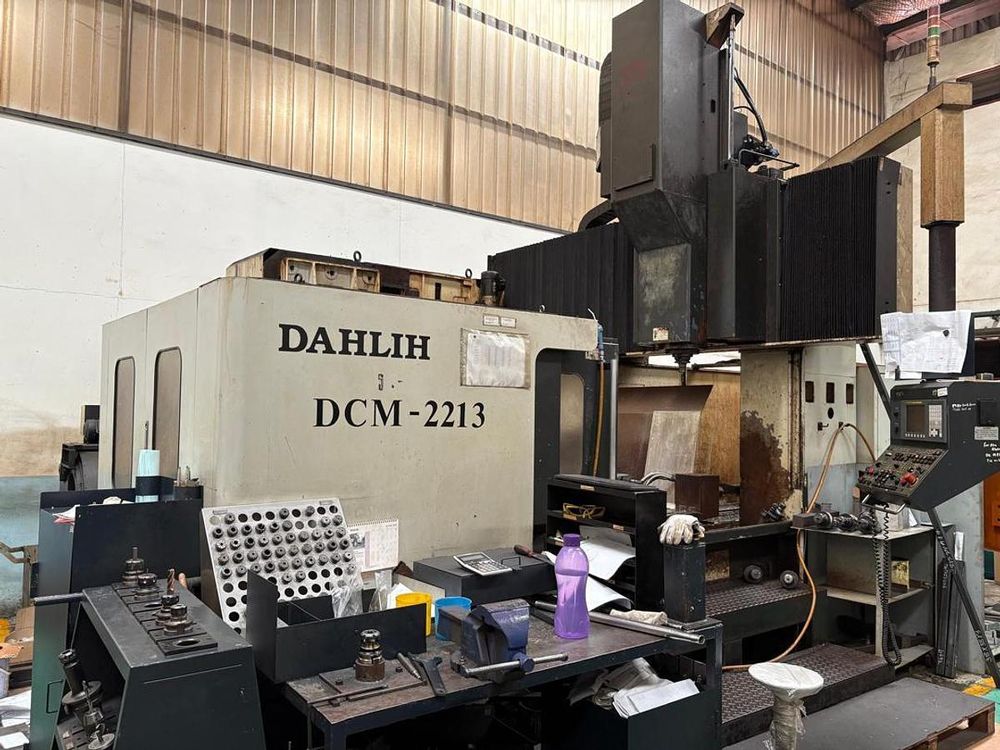

Dah Lih DCM-2213 3 Axis

Technical Data
X-axis travel: 2200 mm
Y-axis travel: 1300 mm
Z-axis travel: 800 mm
CNC control: Fanuc
Table size: 2500 x 1350 mm
Maximum table load: 4000 kg
Distance between columns: 1400 mm
Spindle nose to table surface: 200–1000 mm
Spindle taper: No. 50
Cutting feed rate: 1–10000 mm/min
Minimum input increment: 0.01 mm
Tool magazine capacity: 40 tools
Tool holder type: BT50
Maximum tool weight: 18 kg
Maximum tool length: 400 mm
Maximum tool diameter: 125 mm
Floor space required: 4230 x 8500 mm
Machine weight: 23000 kg

Features / Equipment
Double column machining center
Automatic tool changer
Bidirectional tool selection
Used condition
