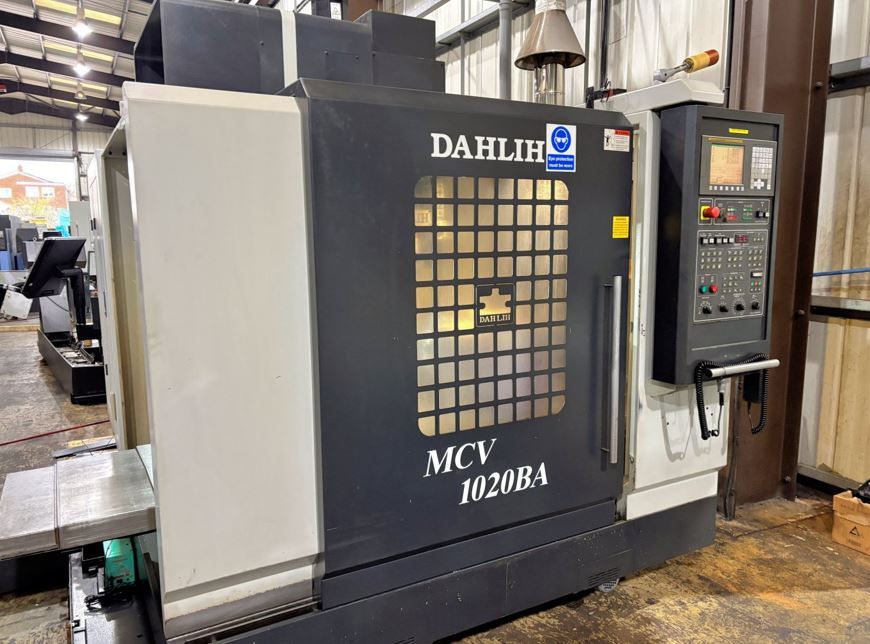

Dah Lih MCV 1020BA 3 Axis

X-axis travel: 1020 mm
Y-axis travel: 550 mm
Z-axis travel: 560 mm
Rapid feedrate: 20 m/min
Control: FANUC 0i-MC
Coolant
Interlocked guards
Through-spindle coolant
Spindle motor power: 11 kW
Tool holder taper: BT40
Minimum height under spindle: 150 mm
Maximum height under spindle: 710 mm
Distance from spindle center to column: 600 mm
Table size: 1250 x 660 mm
T-slots: 5 x 18 mm
Tool change capacity: 24 stations
Maximum tool diameter: 77 mm
Maximum tool length: 300 mm
Maximum tool weight: 7 kg
Maximum workpiece weight: 1000 kg
Machine dimensions: 5670 x 2975 x 2715 mm
Machine weight: 7830 kg
