Dah Lih MCV1450 Vertical Machining Centre 3 Axis
Ref :
2720160-3-MT
Condition :
Used
Manufacturer :
Dah Lih
Model :
MCV1450 Vertical Machining Centre
Nb Of Axis :
3 Axis
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

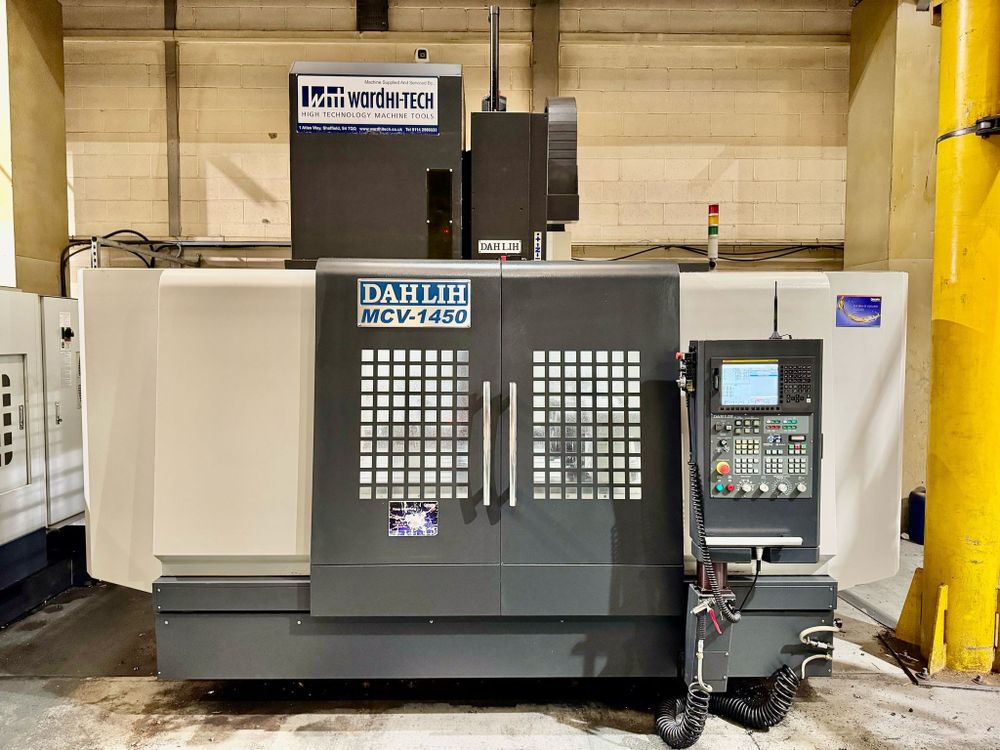

DAHLIH MCV1450 Vertical Machining Centre
Control: Fanuc Series 0i-MF
Year: 2019
Table Size: 1600 mm x 800 mm
T Slots (No. & Size): 22 x 5 mm
Table Load Capacity: 2000 kg
X/Y/Z Travels: 1450 mm / 750 mm / 750 mm
Min/Max Distance Table to Spindle: 200 mm / 950 mm
Distance Between Spindle Centre and Column Surface: 850 mm
Rapid Feed Rates (X/Y/Z): 20 m/min / 20 m/min / 12 m/min
Spindle Nose: BT50
Max Spindle Speed: 6000 rpm (low/high gearbox)
Automatic Tool Changer: 32 Tools
Spindle Motor Power (Continuous): 11 kW
Spindle Motor Power (Rated Output 30 min): 15 kW
X/Y/Z Motor Power: 4 kW / 7 kW / 4.2 kW
4th Axis Attachment: 315 mm dia., 3 Jaw Chuck
Approximate Machine Size (L x W): 5330 mm x 4150 mm
Approximate Weight: 14,500 kg
