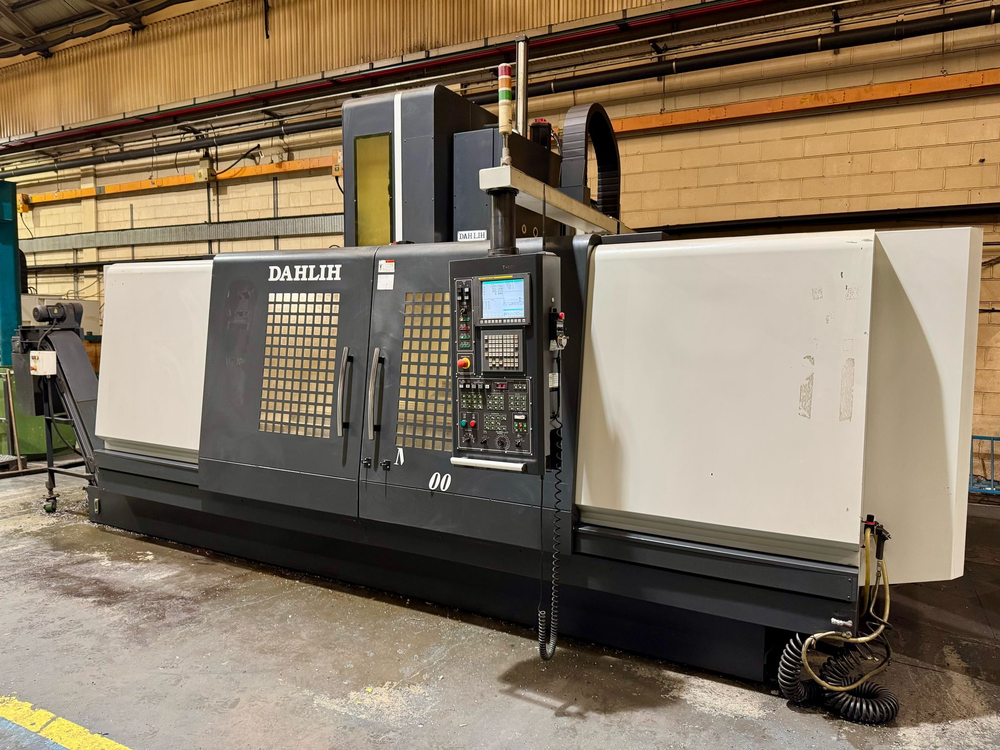

Dah Lih MCV2100 3 Axis

DAHLIH MCV2100
Year 2013

Vertical Machining Centre with Fanuc Series 0i-MD Control.
Table size 2300mm x 970mm.
T slots no. & size 22 x 5mm.
Table load 3000kg.
X/Y/Z travels 2100/870mm/760mm.
Min/Max distance table to spindle 200/960mm.
Distance between spindle centre and column surface 850mm.
Rapids X/Y/Z 10/10/8m/min.
Spindle nose BT50.
Maximum spindle speed 4500 rpm (low/high gearbox). 32 ATC.
Spindle motor (cont) 15 kW.
Spindle motor (rated output 30min) 18.5 kW.
X/Y/Z motor power 4.2 kW.
Approximate machine size 7700mm x 4694mm.
Complete with 4th Axis Attachment 400mm dia.
3 Jaw Chuck. 360mm Centre Height.
Approximate weight 18,000 kg
