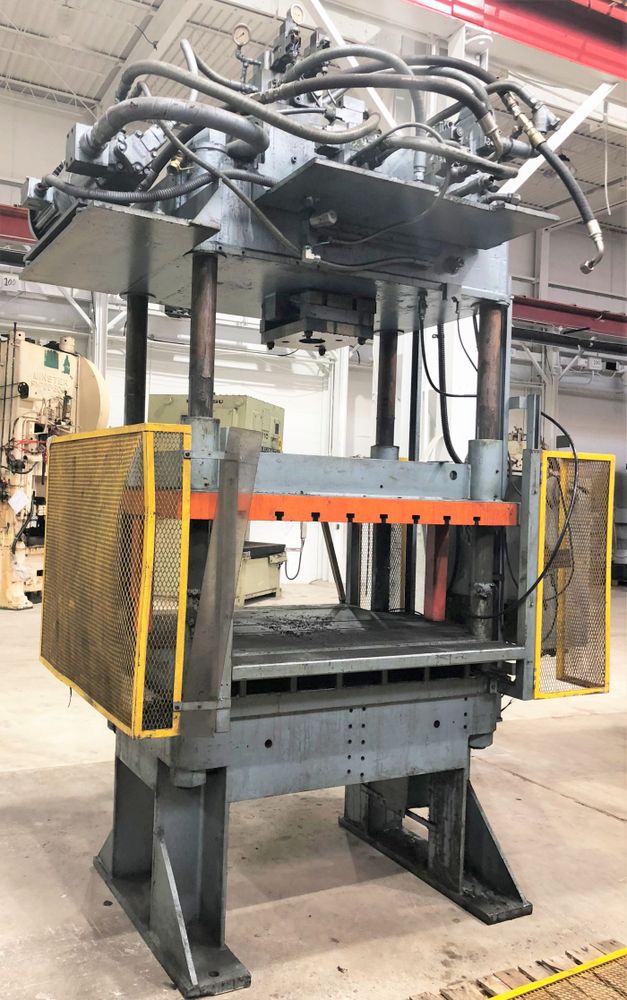

Dake 4 Column Dake 50 TONS

CAPACITY: 50 TONS
MAX. STROKE: approx. 45"
MAX. DAYLIGHT TO BED: APPROX. 40" or 34" over 6" bolster
overall bed and ram: 61" x 36" (rl x fb)
DISTANCE BETWEEN POSTS: 48" x 24" (RL X FB)
USABLE BED & RAM AREA: 48" x 36" (RL X FB)
POST SIZE: 3.75" dia.
CYLINDER SIZE: APPROX. 5" DIA.
vickers pumps
crown mounted hydraulic unit
20 hp 230/460v-3-60 lincoln a.c. motor
50/25 amps
1750 rpm
allen-bradley micrologix 1000 controller
FLOOR TO BED HEIGHT: 36.25"
6" x 48" x 24" t-slot bolster
FLOOR STANDING DESIGN
CROWN MOUNTED HYDRAULIC UNIT
