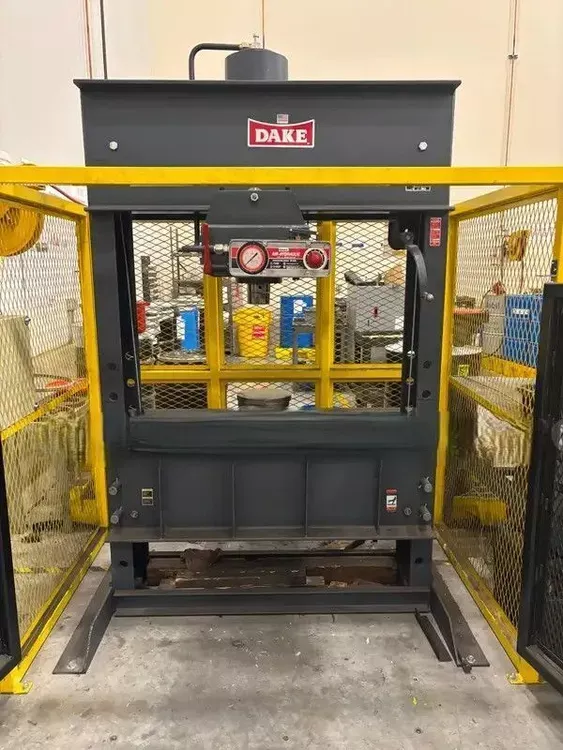

Dake 906650 150 Ton

DAKE 906650

150 Ton capacity
Dimensions: 66" x 42" x 95"
Weight: 3,000 lbs
Air over hydraulic power
Air pressure: 90-125 psi
Width between uprights: 48"
Width between table channels: 12-1/4"
Minimum ram to table: 10"
Maximum ram to table: 30"
Ram travel: 16"
Horizontal workhead travel: 21-7/8"
Base size: 66" x 42"
Height: 95"
Air operation eliminates hand pumping
Safety valve protects against overloads
Movable workhead roller mounted on ball bearings for off-center work
Dual air pumps for faster pressing speeds
Rapid ram approach moves ram quickly to work
Stroke indicator ensures accurate ram control
By-pass hole eliminates excessive ram extension
Adjustable table with self-locking hoist for vertical movement
