Davi MCB2527

DAVI MCB2527

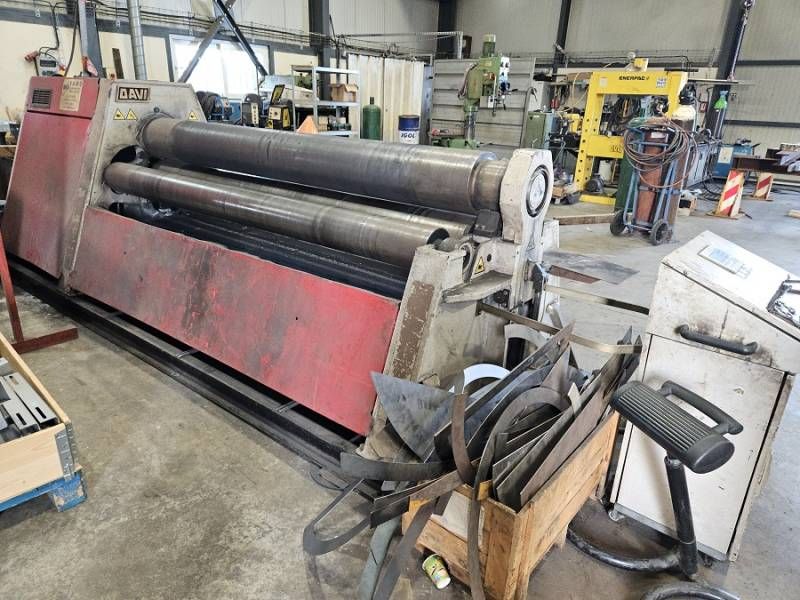

Four-roll hydraulic plate rolling machine
Capacity: 2550 x 15/12 mm (steel at 45 kg/mm²)
Upper roll diameter: 270 mm
Lower roll diameter: 250 mm
Motor power: 15 HP
Power supply: Three-phase 400 volts
Mobile control panel
DAVI EASY PRO numerical control
Hydraulic independent vertical movement of two side rolls
Four rolls produce tubes with double-edged pinch in one pass
Maintains constant horizontal plate position during rolling
Quick plate leveling by side roll stop
Conical rolling facilitated by inverse cone inclination of pinch roll
CE compliant used machine
Functional condition
Revision available on request
