Davi MCO 2522

sheet width: 2550 mm
plate thickness: 10.0 mm ST
pre-bending: 8.0 mm ST
upper roll diameter: ~205 mm
side roll diameter: ~195 mm
control: conventional
oil volume: 80.0 Liter
voltage: 380 V
total power requirement: 7.5 kW
weight: 4500 kg
dimensions (L x W x H): 5000 x 1500 x 1300 mm

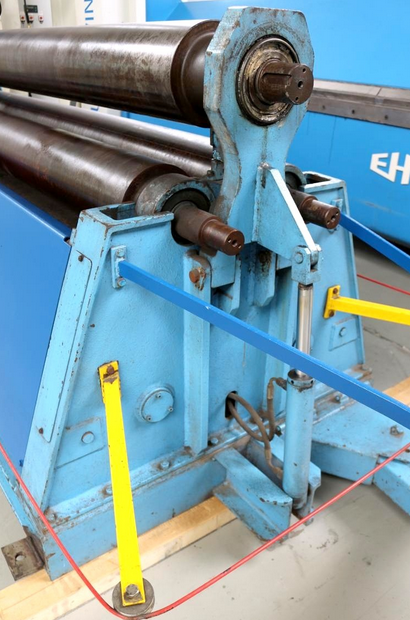

Robust electro-hydraulic 3-roll bending machine
3-roll system for wide bending and rounding range
Pivoting control unit at front
Operation control of all rolls and machine axes
Digital position display
Manual operation via joysticks
Bending capacity up to 1.1 x top roll diameter
Forged and hardened rolls 53–55 HRC
Low-maintenance machine design
Welded steel construction
Electro-hydraulic folding bearing for easy pipe removal
Pressure gauge for roll force indication
Safety device with safety lanyard and switch unit
Operating instructions (PDF)
