Davi (PROMAU) MCB 2027

sheet width: 2050 mm
plate thickness: 20.0 mm ST
pre-bending: 16.0 mm ST
diameter of upper rolls: ca. 270 mm
side roll diameter: ca. 240 mm
diameter of lower rolls: ca. 250 mm
working hours: ca. 7,800 h
control type: NC
control system: EASY PRO
oil volume: ca. 200 L
voltage: 380 V
total power requirement: 13.5 kW
machine weight: ca. 9,000 kg
machine dimensions: 4000 x 2080 x 1800 mm

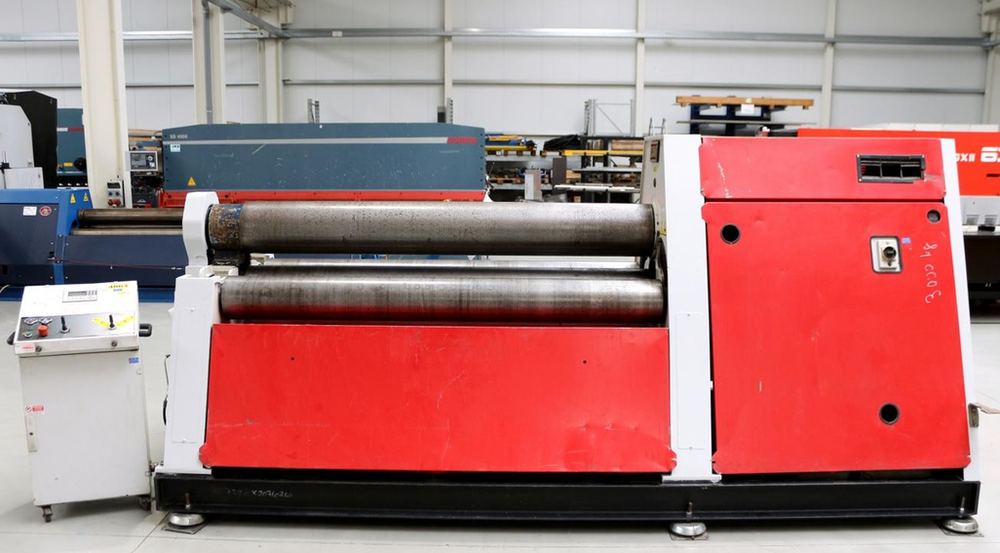

Robust electro-hydraulic 4-roll plate bending machine
Arc-shaped feed of side rollers (swing arm technology)
4-roll design for multiple bending and rolling operations
Single-pass rolling process
Mobile control unit
Manual operation mode
Automatic operation mode
Self-learning programming mode
Control of all rollers and machine axes
Digital roller position display
Curved side roller feed (PSG guide system)
Tight bending radii up to 1.1 × upper roll diameter
Conical rolling capability via roller tilt
Electronic roller parallelism system
Stepless speed adjustment up to 5.0 m/min
Bi-directional bending capability
Forged and hardened rollers (53–55 HRC)
Low-maintenance machine design
Easy sheet removal due to low frame construction
Welded steel construction
Electro-hydraulic swivel bearing for tube removal
Operating manual included
