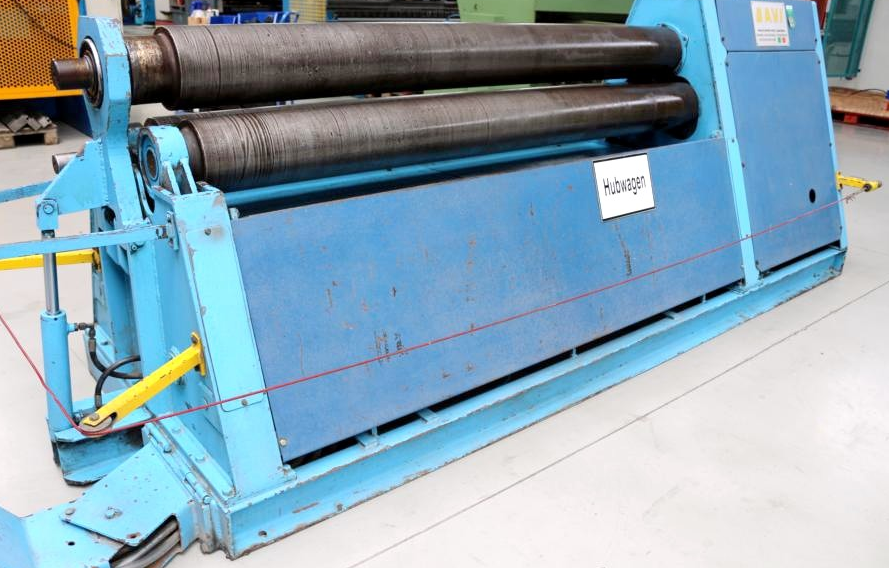

Davi MCO 2020 3-Roll Plate Bending Machine

DAVI MCO 2020 3-Roll Plate Bending Machine
1992

Sheet width: 2050 mm
Plate thickness: 10.0 mm ST
Pre-bending capacity: 8.0 mm ST
Upper roll diameter: 205 mm
Side roll diameter: 195 mm
Control type: Conventional
Oil volume: 80.0 liters
Voltage: 380 V
Power requirement: 5.5 kW
Weight: 3200 kg
Length: 4500 mm
Width: 1500 mm
Height: 1300 mm

Electro-hydraulic 3-roll bending machine
Pivoting front control unit
Digital position display
Manual joystick operation
Forged hardened rolls (53-55 HRC)
Electro-hydraulic folding bearing
Pressure gauge for rolls
Safety lanyard with switch
Sturdy welded steel construction
Low-maintenance design
Maximum diameter: 1.1x top roll diameter
