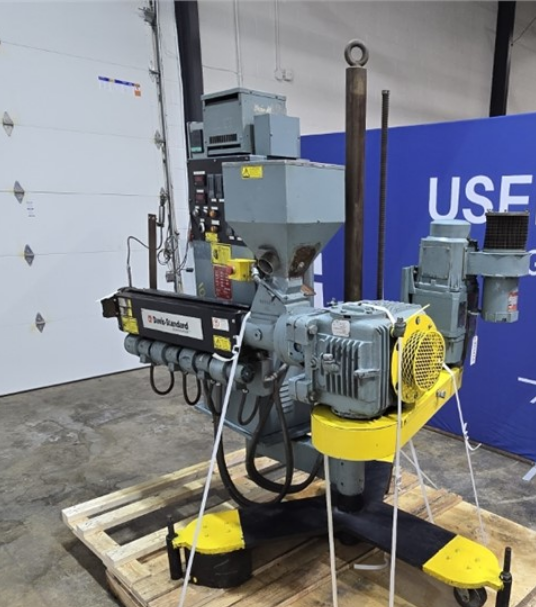

Davis Standard 1.5" Pedestal Extruder

1.5" Davis Standard Pedestal Extruder, 30:1 L/D,
7.5 HP DC Motor With Blower
2 Downstream Zones, 4 Barrel Zones, Air Cooled Barrel
42.5" Centerline Height
7.5 HP Reliance RPM III DC Motor, Identification # T8R1301T-PY
1750/2300 RPM
240/3/60, 28A
Frame: C1811ATZ
Drip Proof Enclosure
Stab Shunt Winding
With 1/3 HP Blower
Gearbox Rated For 10 HP
15:1 Ratio, Input RPM: 1750
Davis-Standard Blue Ribbon Drive
Crompton Digital RPM & Amp Gauges, Eurotherm 3208 Temp Controllers, Start/Stop, Speed POT, Drive Fault Indicator,
Cold Start Inhibit/Bypass
Gefran Digital Pressure Transducer Readout
Has Die Clamp
Nameplate Electrical: 230/3/60, 51FLA Largest Load: 28 FLA
Approximate Dimensions: 89" L x 62" W x 83" H
