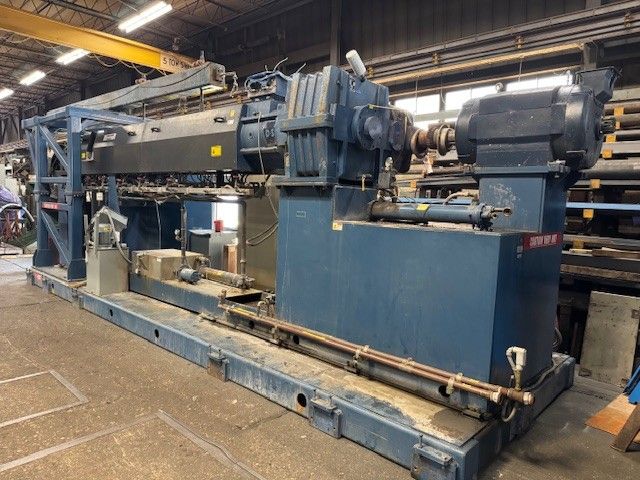

Davis Standard 165MM60T 165mm (6.49″) extruder

Davis Standard model 165MM60T 165mm (6.49″) extruder
having a 34:1 L/D ratio with a nine (9) zone electrically heated,
water cooled (closed loop), vented and plugged barrel at
presently an 89″ centerline.
Gearbox is direct driven by a 400 HP Marathon A/C motor
with Yaskawa Type F7 Model DS-F7U4220N1 Inverter.
Gearbox has a reduction ratio of 24.29:1 and
is rated at 530 HP at a service factor of 1.5.
Liquid cooling system with heat exchanger for gearbox protection.
Thrust bearing is rated at 1,372,200 LB. 12″x8″ feed throat with
drawer magnet and slide gate, 16.5″-barrel flange.
Unitized control panel with digital temperature controllers.
Overhead trolley.
Manufactured 5/06.
Approximate Footprint: 28″L x 8’W x 10’H
