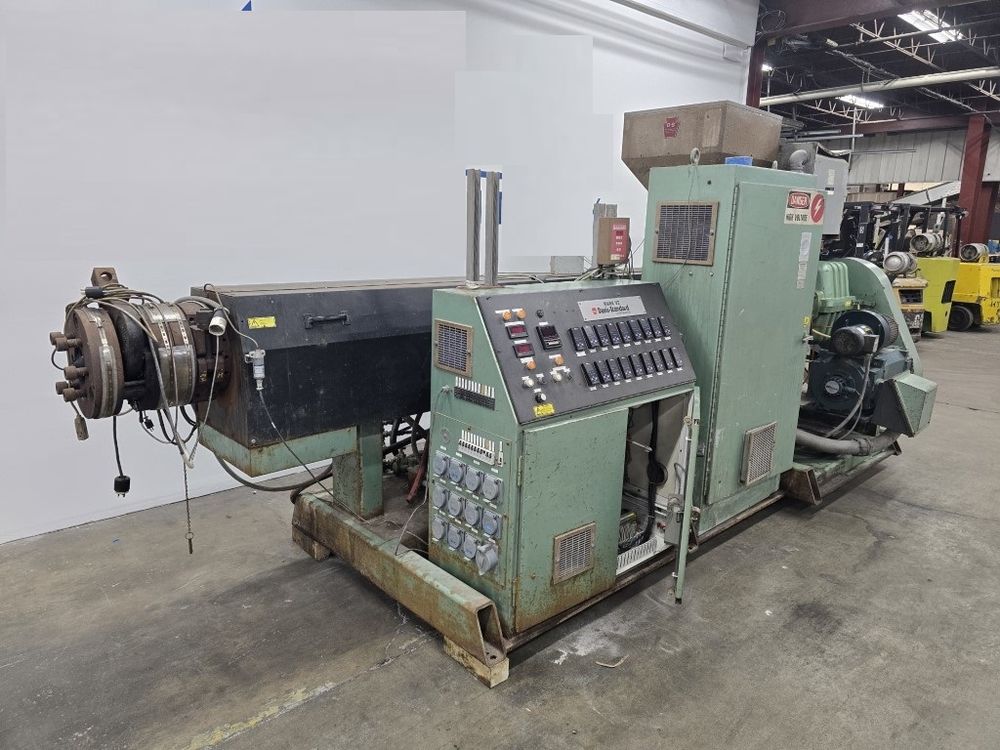

Davis Standard 4.5" Single Screw Extruder

4.5" Davis Standard Single Screw Extruder, Water Cooled, 30:1 L/D, 250 HP
Water Cooled Barrel, 6 Barrel Zones, 12 Downstream Zones
9" x 5.25" Feed Throat
250 HP Baldor AC Motor
1770 RPM @ 60 Hz / 3450 RPM @ 117.5 Hz
URL3203Z Frame, DPG-FV Enclosure
Davis Standard Gearbox, Rated To 360 HP
17.49:1 Ratio
1.5 SF @ Ext. RPM 100
Yaskawa A1000 VFD, CIMR-AU4A0362AAA
Input: 3/480/60, 300A
Output: 0-180/3/0-400Hz, 304A
Automation Direct Solo 4896 Temp Controllers, Crompton Digital Amp And Screw Speed Readouts,
Speed Pot, Start/Stop Buttons, Digital Pressure Readout, Indicator Lights For Oil Filter/Drive Faults/Alarms
Movacolor Inline Hopper Dosing System
450 Amp Siemens Sentron Series Main Disconnect - 600V Max
460/3/60, 351 FLA
Approximate Dimensions: 216" x 84" x 96"
