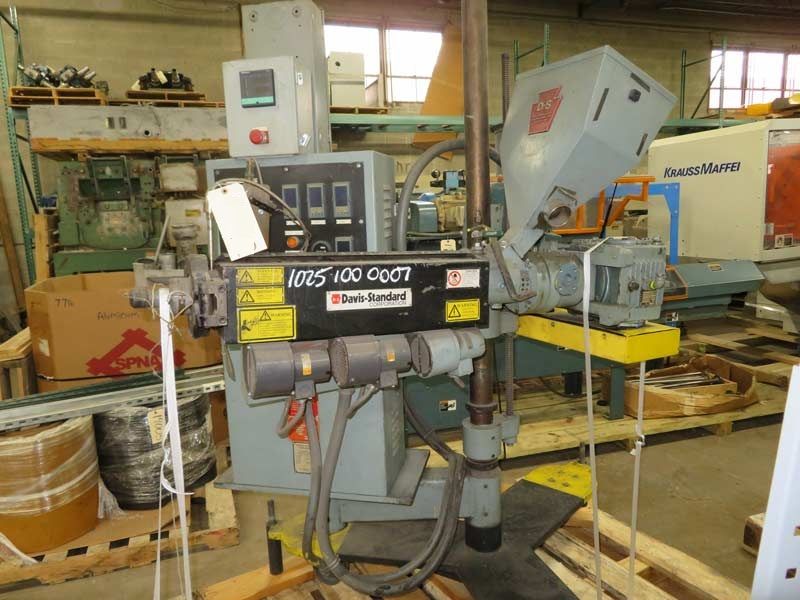

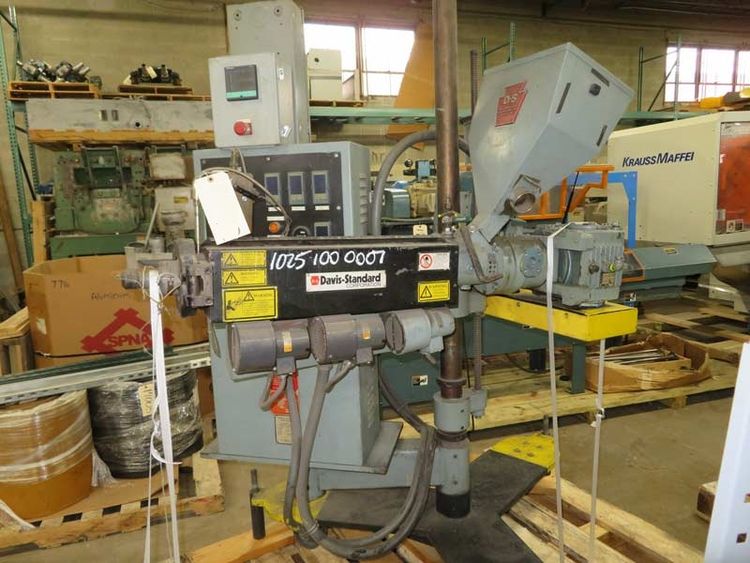

Davis Standard DS 125 pedestal extruder

Davis Standard model DS 125 pedestal extruder.
1.25″ 24:1 L/D three (3) zone electrically heated and air-cooled barrel.
Unit is mounted on a tripod with casters.
Textron gearbox has a reduction ratio of 15:1 and is rated at 7.05 HP at a service factor of 1. Gearbox is belt driven by a
7.5 HP Allen Bradley 230/460-volt 1775 RPM inverter duty A/C motor with
Allen Bradley Powerflex 700 drive.
Barrel can be raised or lowered and can also tilt for co-extrusion applications. Has Locking legs and gravity feed hopper.
Unitized control panel with four (4) zones of Eurotherm instruments,
3 barrel,and 1 die.
C-Clamp on barrel discharge.
Manufactured 6/1996.
230/3/60. 60 FLA. 2,100 lbs.
