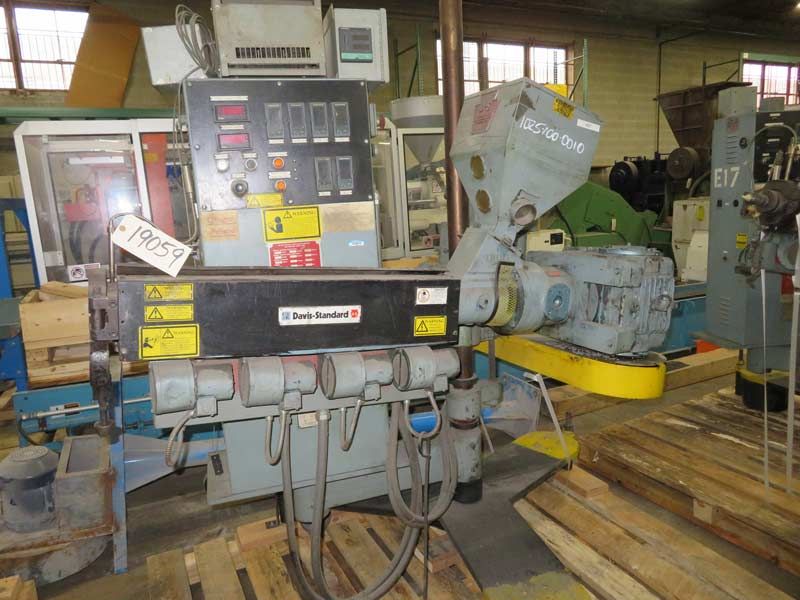

Davis Standard DS 15 1.5″ pedestal extruder

Davis Standard model DS 15 1.5″ pedestal extruder.
24:1 L/D four (4) zone electrically heated and air-cooled barrel.
Unit is mounted on a tripod with casters.
Textron Cone Drive Gearbox has a reduction ratio of 15:1 and
is rated at 10.2 HP at a service factor of 1.
Gearbox is belt driven by a 7.5 HP 1750/2300 RPM
Reliance D/C motor with Davis Standard Blue Ribbon Drive.
Barrel can be raised or lowered and can also tilt for co-extrusion applications.
Has Locking legs and gravity feed hopper.
Unitized control panel with six (6) zones of Eurotherm instruments,
4 barrel and 2 die.
C-Clamp on barrel discharge.
Manufactured 3/1996.
