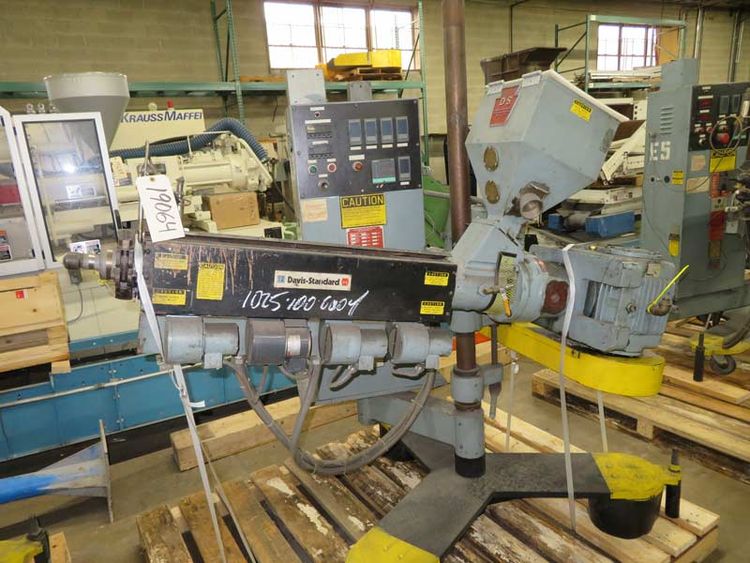

Davis Standard DS 15 1.5” pedestal extruder

1.5” 24:1 L/D Davis Standard model DS 15 1.5” pedestal extruder having a
four (4) zone electrically heated and air-cooled barrel.
Unit is mounted on a tripod with casters.
Has Locking legs and gravity feed hopper.
Textron gearbox has a reduction ratio of 15:1 and
is rated at 10.2 HP at a service factor of 1.
Gearbox is belt driven by a 7.5 HP Reliance 230/460-volt 1775 RPM
inverter duty A/C motor with Allen Bradley Powerflex 700 drive.
Barrel can be raised or lowered and can also tilt for co-extrusion applications.
hopper. Unitized control panel with Six (6) zones of Eurotherm instruments,
4-barrel and 2 die. C-Clamp on barrel discharge.
Manufactured 6/1996.
230/3/60. 60 FLA. 2100 pounds
