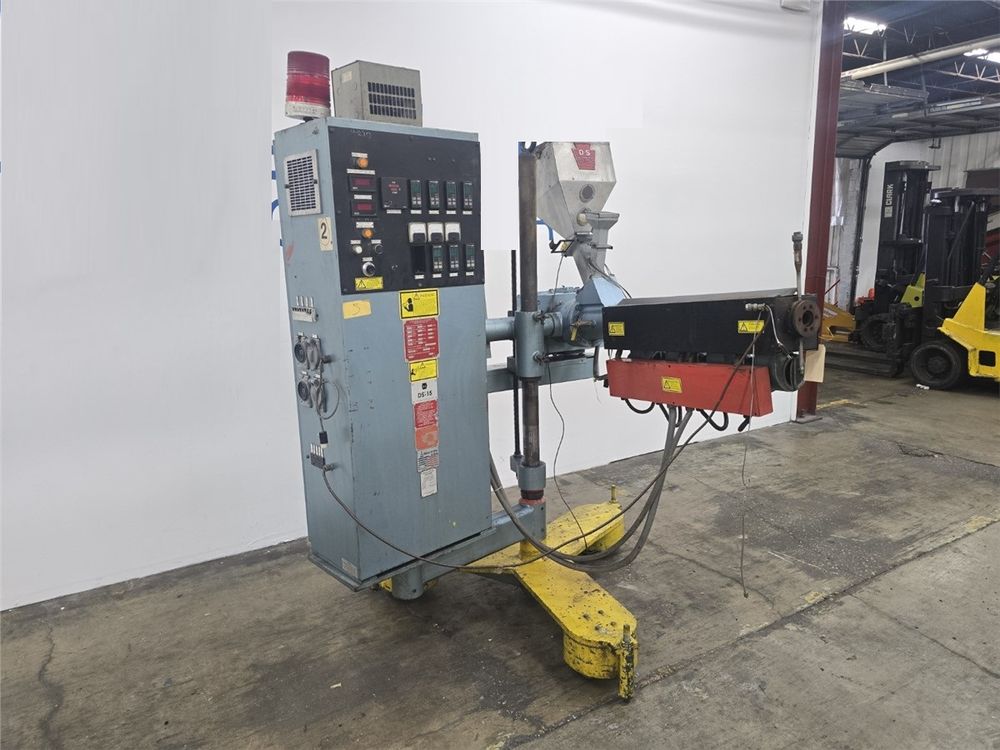

Davis Standard DS-15 Extruder

1.5" Davis Standard Pedestal Extruder, Model DS-15, 24:1 L/D, 7.5HP DC Motor
24:1 L/D Air Cooled Barrel, 4 Barrel Zones, 4 Downstream
7.5hp Reliance Electric Motor, 1750/2300 RPM,
240 Volts, 28A
Stab Shunt, Drip Proof Insulation Class F
Davis Standard Blue Ribbon Drive, S/O 1GAW09407, S/N: L-1 V-1 (Picture 5)
Cone Drive Gearbox with 15:1 Gearbox Ratio Rated For 7.5 HP
HES 808 Temp Controllers, Dedicated Analog Amp Gauges For Die Zones,
Speed Pot, Start/Stop Controls, Cold Start Bypass, Crompton Digital Gauges
For Motor Load & Screw Speed, Gentran GT439 Digital Pressure/Temp Gauge,
Drive Fault Indicator
230/3/60, 58 FLA
70 Amp Rotary Disconnect
With 3PH Reactor, Cat. No. 3PR-0027C3L, AMP: 27A, Class: 220 (H) T.
Rise: 115C, 600V Max, IMP.: 3%
Approximate Dimensions: 78" x 76" x 89" H
NO SCREW
