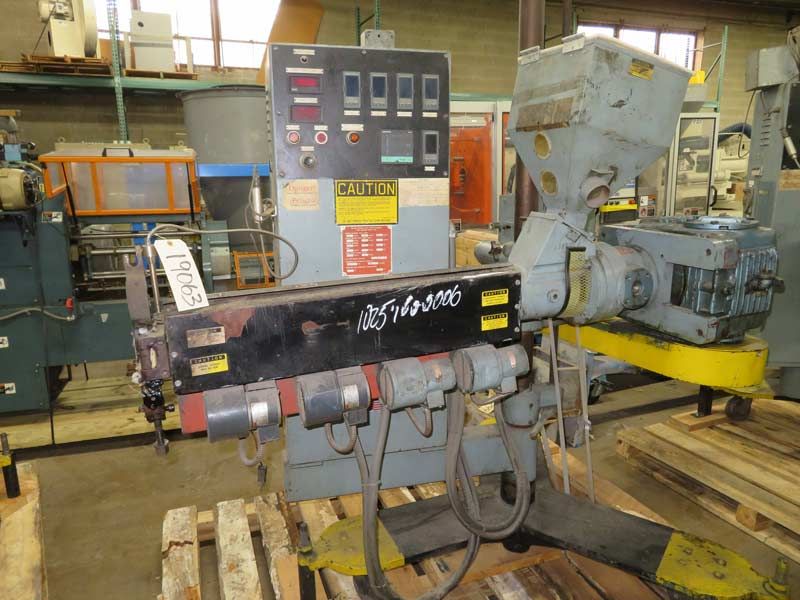

Davis Standard DS15 1.5” pedestal extruder

1.5” 24:1 L/D Davis Standard model DS15 1.5” pedestal extruder having
a four (4) zone electrically heated and air-cooled barrel.
Unit is mounted on a tripod with casters.
Has Locking legs and gravity feed hopper.
Textron gearbox has a reduction ratio of 15:1 and is rated at 10.2 HP at
a service factor of 1.
Gearbox is belt driven by a 7.5 HP D/C motor with.
Reliance FlexPak VS drive.
Barrel can be raised or lowered and can also tilt for
co-extrusion applications. hopper.
Unitized control panel with six (6) zones of Eurotherm instruments,
4-barrel and 2 die. C-Clamp on barrel discharge.
Manufactured 3/1996.
230/3/60. 60 FLA.
2100 pounds.
