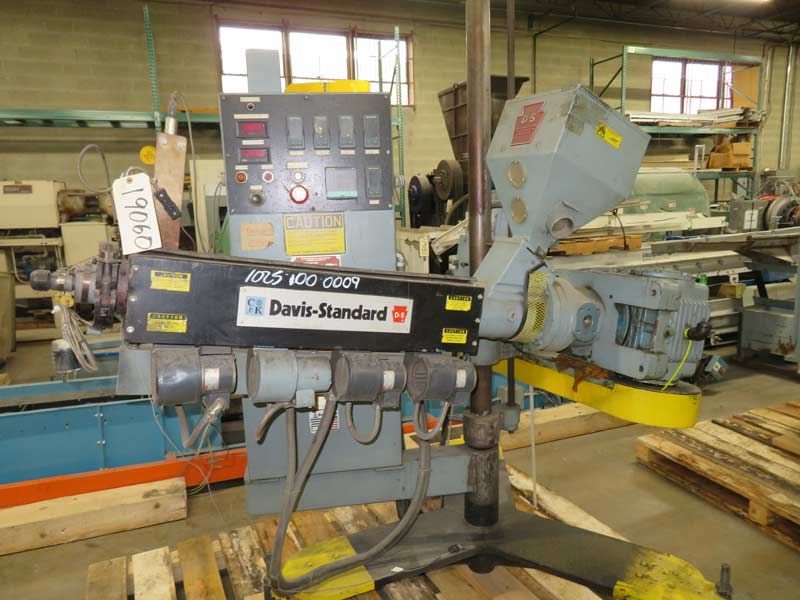

Davis Standard DS15

1.5” 24:1 L/D Davis Standard model DS15 1.5” pedestal extruder having a
four (4) zone electrically heated and air-cooled barrel.
Unit is mounted on a tripod with casters.
Has Locking legs and gravity feed hopper.
Textron gearbox has a reduction ratio of 15:1 and is rated at
10.2 HP at a service factor of 1.
Gearbox is belt driven by a 7.5 HP 1750/2300 RPM Reliance D/C motor
with Reliance FlexPak VS Drive.
Barrel can be raised or lowered and can also tilt for co-extrusion applications.
hopper. Unitized control panel with seven (7) zones of Eurotherm instruments,
4-barrel, 2 die.
C-Clamp on barrel discharge.
Manufactured 3/1996.
230/3/60.
