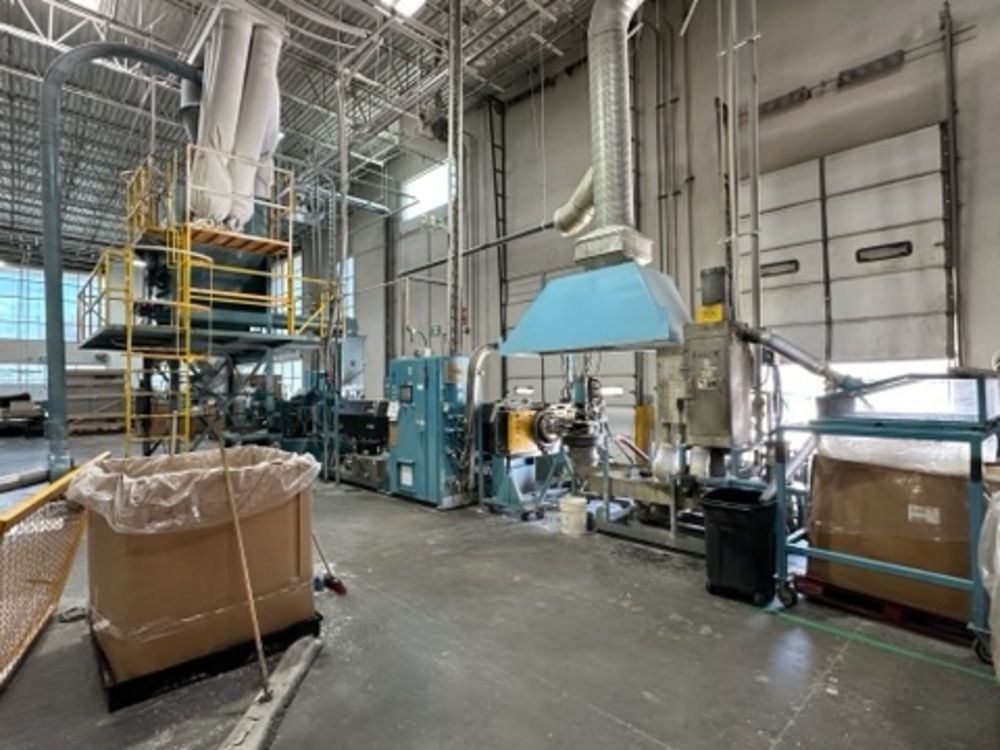

Davis Standard Scrap Reclaim Line

Screw Size 6.0"
L/D Ratio 34:1
Vented Yes
Water Cooled Yes
Number of Zones (7) Seven Zones
Additional Zones (5) Heat Only Zones (3 Screen Changer/1 Adapter/1 Die)
Horsepower 500 HP AC Motor
Drive Yaskawa AC Variable Frequency Drive (1750 RPM)
Gearbox Ratio 17:1
Gearbox Rating 530 HP Rating @ 100 RPM
Control DS-TPC (Touch Panel)

Screen Changer
Hydraulic Slide Plate Screen Changer, Fully Assembled and
Arranged for Connection to Extruder Discharge, Downstream Reducer Bushing,
(2) Two Breaker Plates, Solenoid Operated Directional Valve Integral with
Hydraulic Cylinder

Water Ring Pelletzer
Pellets are cut in air at the die face, and then quenched in a ring of cooling water,
Hot, dry cutting provides simple start-up with no critical timing sequence,
Production is continuous and is insensitive to flow disruptions caused by
screen changes or loss of feed, "Flex Blade" design eliminates adjustment,
automatically compensates for blade wear, and provides long blade life,
No micrometer adjustment is required and critical alignment of the cutter shaft to
the die face is eliminated
