Davis Standard Super Blue 35EH

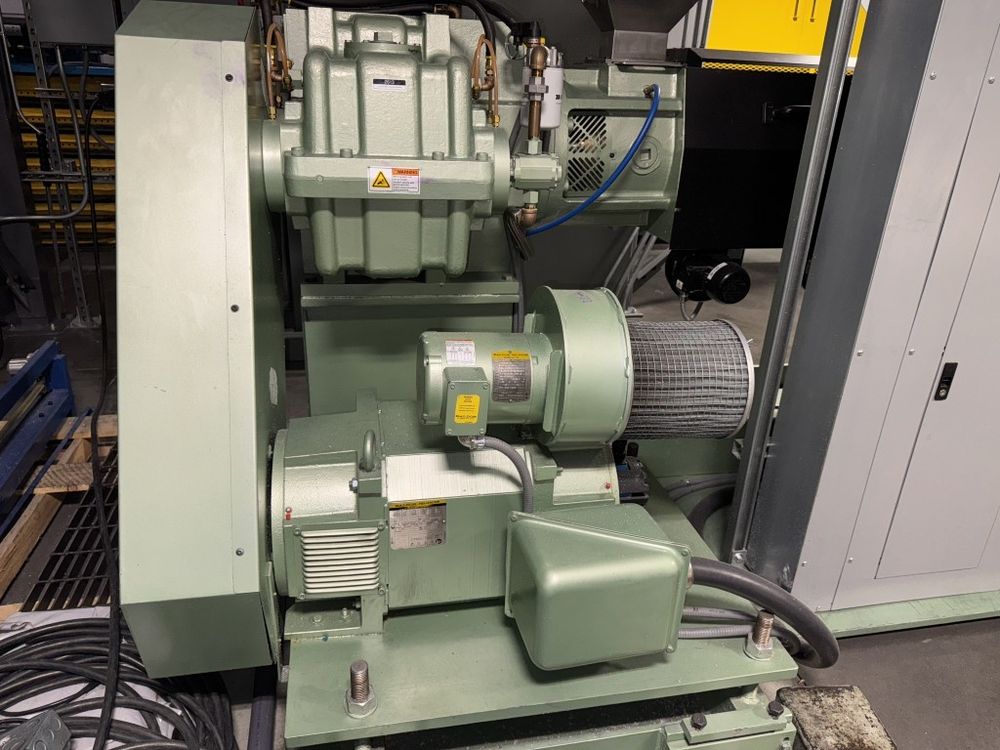

100mm Davis Standard Single Screw Extruder, Model Super Blue 35EH
30:1 L/D Air Cooled Non-Vented Barrel, 6 Barrel Zones
17.39 Gearbox Ratio, 265 hp Capacity with 1.25 Service Factor
150hp Baldor Reliance AC Inverter Duty Motor with Yaskawa A1000 AC Drive
Davis Standard/Eurotherm Temperature Controllers, 6 Barrel Zones, 9 Die Zones
Motor Load / Screw RPM / Pressure Transducer Gauges, Speed Pod
With Hopper, Barrel Clamp, And 4" PSI Manual Screen Changer
Right to Left Operation
Approximate Dimensions: 214" L x 70" W x 94" H
