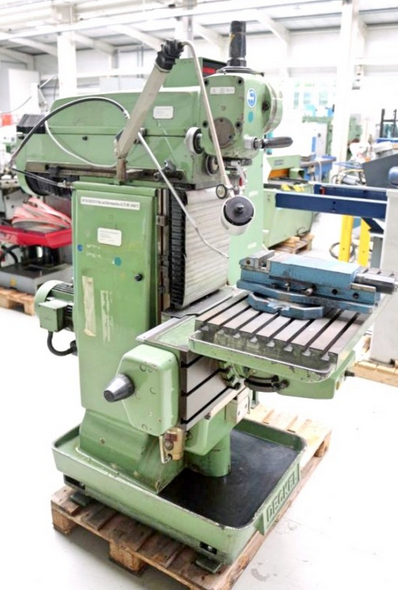

Deckel FP 3 2000 rpm

X travel: 490 / 500 mm
Y travel: 290 / 300 mm
Z travel: 370 / 380 mm
Quill stroke: 95.0 mm
Spindle speed range: 40 - 2000 rpm
Feed range: 10 - 500 mm/min
Rapid traverse: 1500 mm/min
Table size: 420 x 800 mm
T-slots: 9 x 12 / A 45 mm
Motor power: 4.0 kW
Machine weight: 1250 kg
Machine dimensions (L x W x H): 1550 x 1800 x 1745 mm
HEIDENHAIN digital display
Swiveling angle support table
T-slot vertical table
DECKEL double swivel milling head
Swiveling in 2 axes
Extendable quill
Horizontal milling spindle
Automatic feeds in X, Y, Z axes
RÖHM hydraulic vise
Central lubrication system
Coolant system
Swiveling machine light
Splash guard tray
Separate control cabinet
Drawer cabinet with milling cutter holders and cutters
Dividing head
Operating instructions (PDF)
