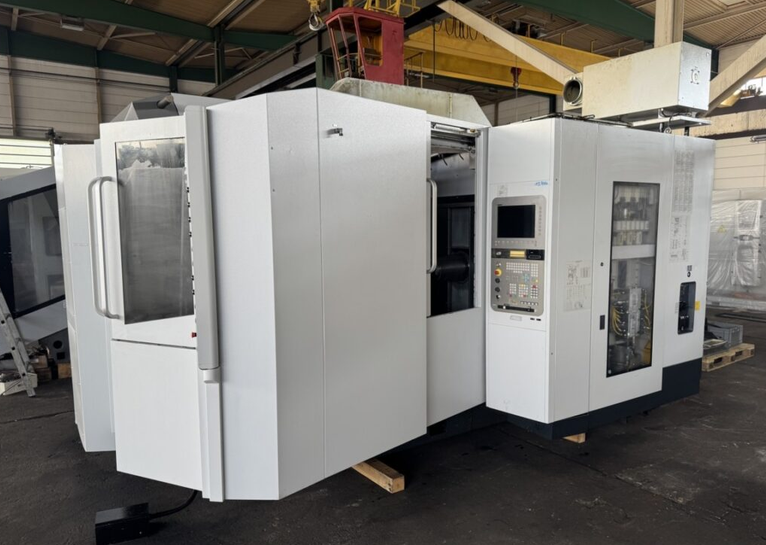

Deckel Maho DMC 60 H linear 5 Axis

X-axis travel: 630 mm
Y-axis travel: 800 mm
Z-axis travel: 750 mm
B-axis: 360° × 0.001°
A-axis: -200° to +25° × 0.001°
Control: Siemens SINUMERIK 840D sl
Mechanical tool breakage control
Spindle speed: 20–18,000 RPM
Spindle power (100% duty): 28 kW
Spindle power (40% duty): 34 kW
Maximum spindle torque (40% / 100% duty): 110 / 84 Nm
Tool taper: HSK 63
Feed rate X/Y/Z: 1–100,000 mm/min
Rapid traverse X/Y/Z: 100 m/min
Feed force X/Y/Z: 9 / 6 / 9 kN
B-axis feed: 1–14,400°/min
A-axis feed: 1–7,200°/min
Pallet size: 2 × 500 × 500 mm
Maximum workpiece weight: 400 kg
Maximum workpiece diameter: 800 mm
Maximum workpiece height: 800 mm

Features:
5-axis machining center
Emulsion mist separator
Without chip conveyor
Without coolant system
Used condition
