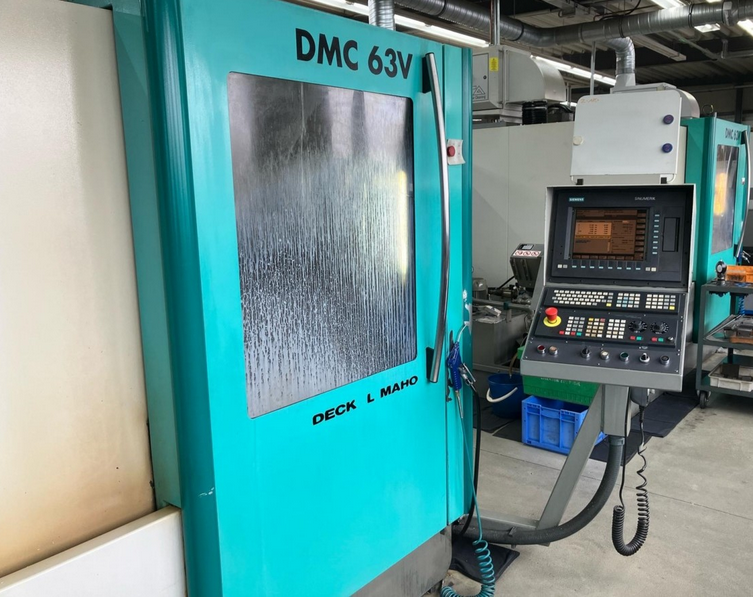

Deckel Maho DMC 63V 3 Axis

X-axis travel 630 mm
Y-axis travel 500 mm
Z-axis travel 500 mm
Rapid travel X, Y, Z 30 m/min
Feed force X, Y, Z 6,000 N
Ball screw diameter / pitch X, Y, Z 40 / 20 mm
Positioning accuracy X, Y, Z 0.015 / 0.010 mm
Resolution input unit X, Y, Z 0.001 mm
CNC control Siemens 810D powerline
Spindle power 13 / 9 kW (40/100 % ED)
Spindle torque 83 / 57 Nm (40/100 % ED)
Spindle speed 1 – 10,000 min⁻¹
Spindle taper SK40 DIN 69871-A
Tool pull force 12,000 N
Tool magazine pick-up
Tool magazine positions 24
Max. tool diameter free adjacent slots 80 / 140 mm
Max. tool length 300 mm
Max. tool weight 7 kg
Tool change time 6.5 sec
Tool magazine rotation speed 47 U/min
Max. magazine load 72 kg
Worktable T-slot area 800 x 500 mm
Max. table load 500 kg
Table loading height 850 mm
Max. workpiece height 240 mm
Lehmann A-axis and counter bearing (new)
Direct measuring system
Through-spindle coolant 15 bar
Coolant system (emulsion)
Electronic handwheel
Chip conveyor
Documentation
CE marking
Spindle replaced 18.03.2022
Spindle hours 51,206 h
Condition maintained, fully operational
