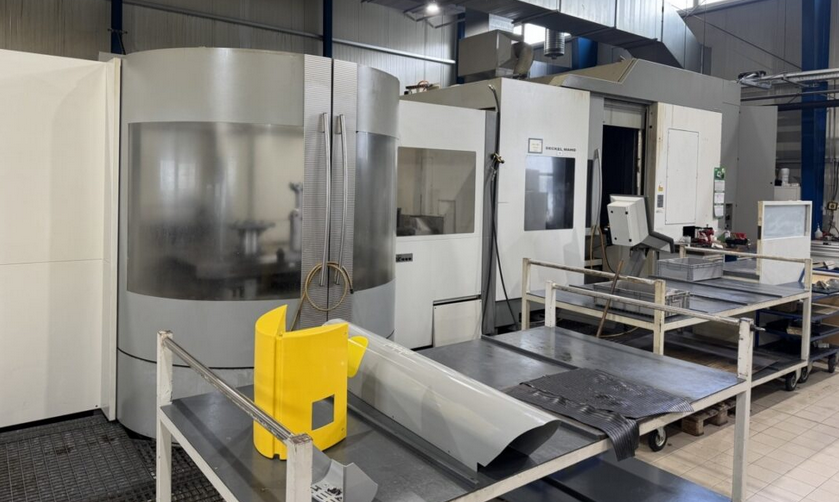

Deckel Maho DMC160U 5 Axis

X-axis travel: 1600 mm
Y-axis travel: 1250 mm
Z-axis travel: 1000 mm
B-axis: -150° / +80° x 0.001°
C-axis: 360° x 0.001°
Feed B-axis: 3600°/min
Rapid traverse C-axis: 1 - 3600 rpm
Control: Siemens Sinumerik 840D
Electronic handwheel
Operating mode 4
TS641 measuring probe
BLUM laser
Coolant system
Coolant through spindle
Chip conveyor
Coolant cooling
Pallet storage system: 4 positions
Pallet size: 1000 x 1250 mm
Table load: 3000 kg
Spindle speed: 20 - 10000 rpm
Spindle taper: SK50
Spindle power at 40% load: 38 kW
Spindle power at 100% load: 25 kW
Max torque at 40% / 100% load: 288 / 187 Nm
Feed X/Y/Z-axis: 20 - 15000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Tool magazine capacity: 240
Tool diameter: 110 mm
Workpiece diameter with 2 vacant positions: 250 mm
