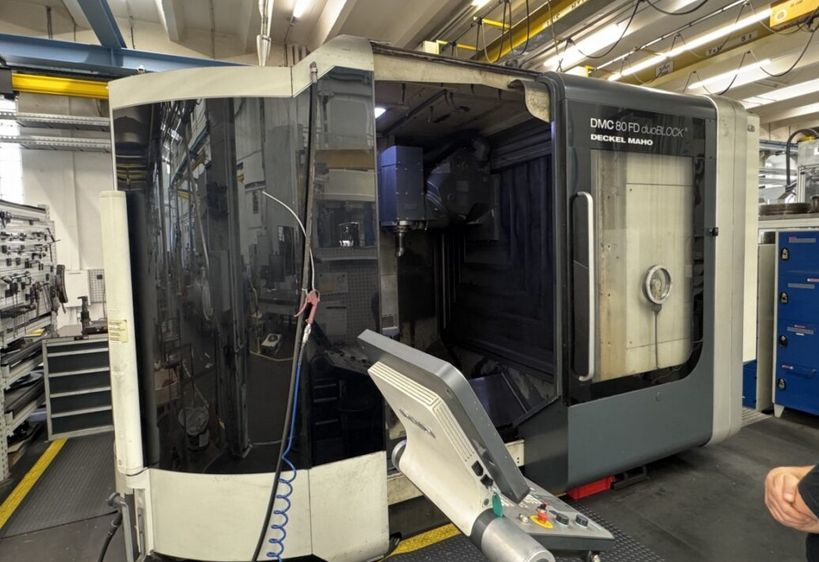

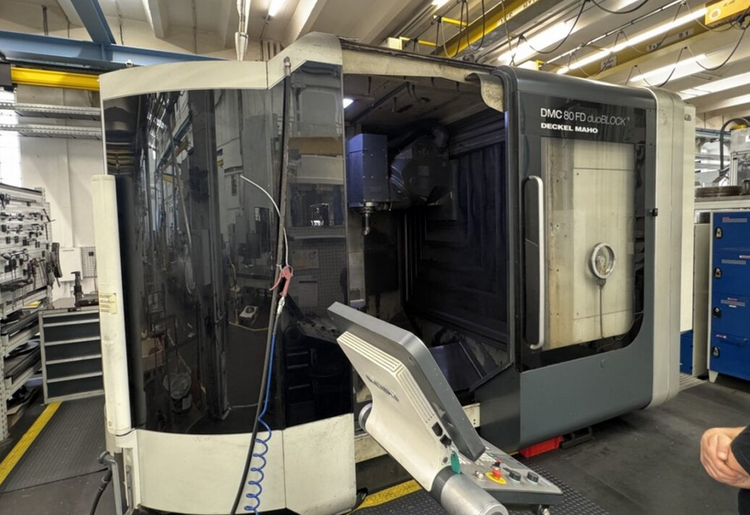

Deckel Maho DMG DMC80FD DUOBLOCK 4 Axis

X-axis travel: 800 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm
B-axis: 180° x 0.001°
Rapid traverse B-axis: 10 rpm
C-axis: 360° x 0.001°
Rotary table speed: 1 - 800 rpm
Control: Siemens SIN840D
Coolant filter system: 980 l
Chip conveyor
Coolant through spindle
Extraction system
BLUM tool measurement
Measuring probe
Operating mode 4
Tool cone cleaning
Hydraulic clamping with proportional valve
Pallet size: 800 x 630 mm
Table load: 0.80 t
Spindle speed: 5 - 10000 rpm
Spindle taper: HSK100
Spindle power at 40% load: 38 kW
Spindle power at 100% load: 25 kW
Max torque at 40% / 100% load: 288 / 187 Nm
Feed X/Y/Z-axis: 0 - 60000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Feed force X/Y/Z: 12 kN
Table power: 13.85 kW
Max torque on faceplate: 1550 Nm
