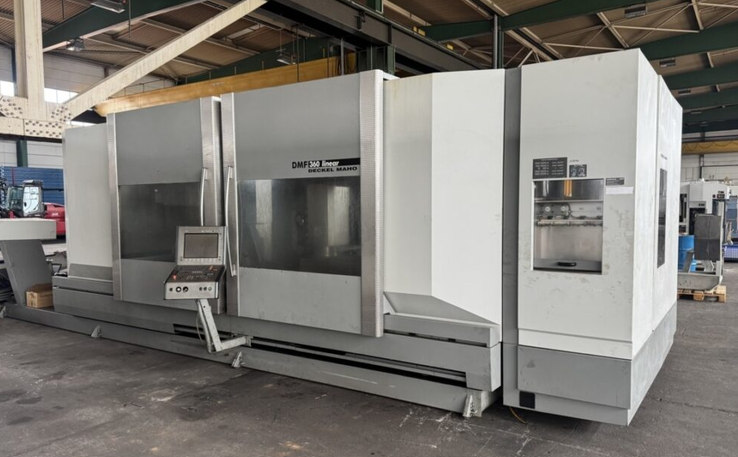

Deckel Maho DMF 360 linear 5 Axis

X travel: 3,600 mm
Y travel: 920 mm
Z travel: 820 mm
B axis: ±90° × 1°
C axis: 360° × 0.001°
Feed rate X/Y/Z: 1–20,000 mm/min
Rapid traverse X: 100 m/min
Rapid traverse Y: 60 m/min
Rapid traverse Z: 60 m/min
Control: Heidenhain iTNC530
Spindle speed: 20–10,000 rpm
Spindle taper: SK50
Spindle power (100% duty): 32 kW
Spindle power (40% duty): 48 kW
Maximum torque (40% / 100% duty): 294 / 196
Table size: 4,200 × 900 mm
Table load capacity: 4,200 kg (central/maximum)
T-slots: 9
T-slot spacing: 100 mm
T-slot dimensions: 1 × 18H7 / 8 × 18H12
Swivel milling head
Partition wall
Tool rack magazine
120 tool positions
Chip conveyor
Coolant system
NC extension table Ø700 mm
Operating mode 4
