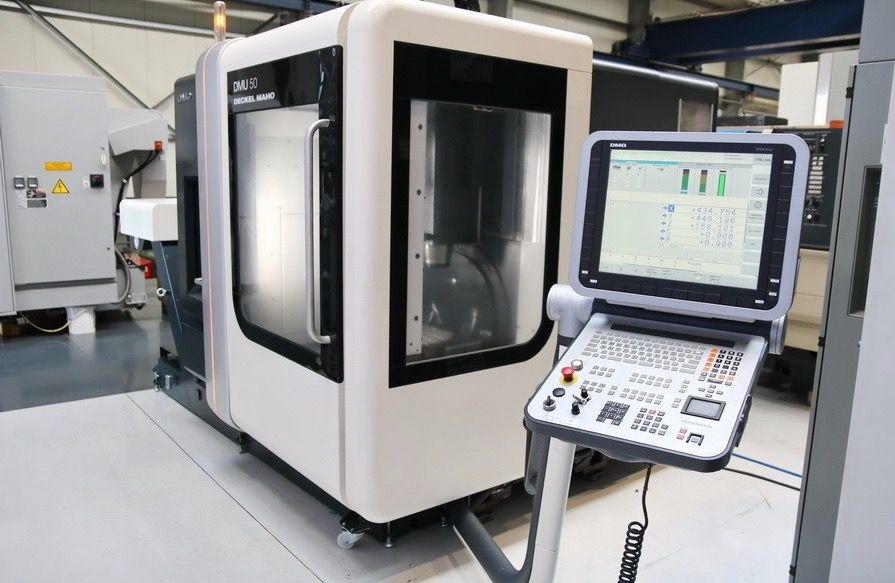

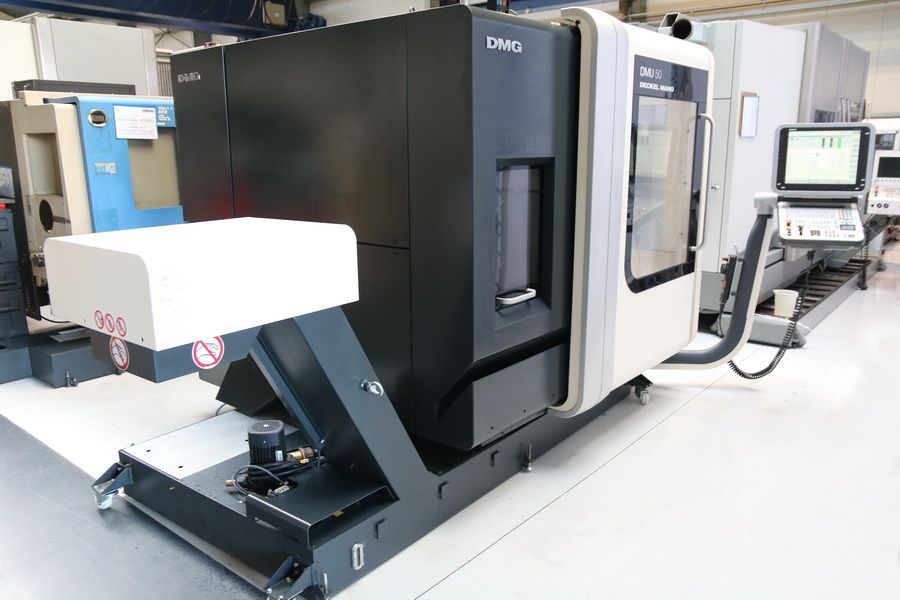

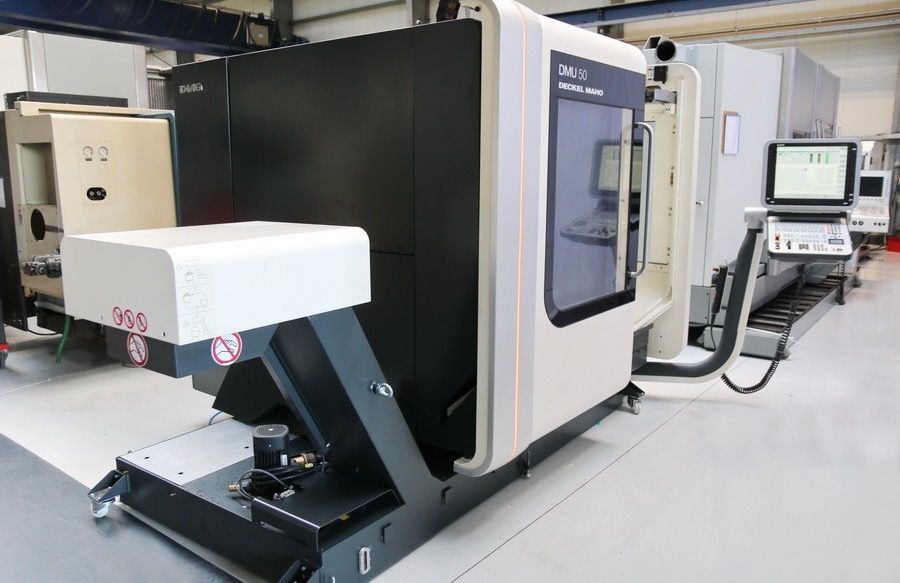

Deckel Maho, DMG DMU 50 NEW DESIGN 5 Axis

Axis travel X 500 mm
Axis travel Y 450 mm
Axis travel Z 400 mm
B axis swivel range −110° to +5°
C axis rotation 360°

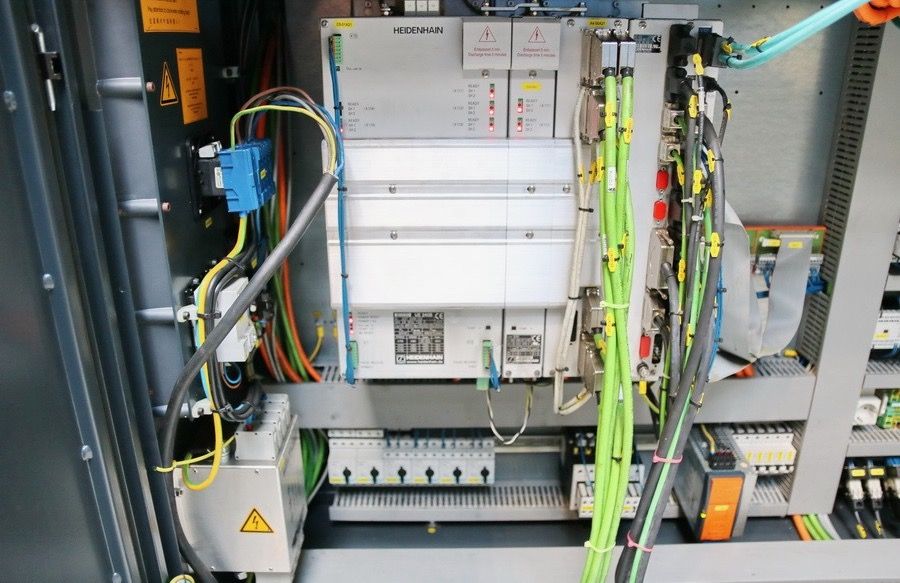

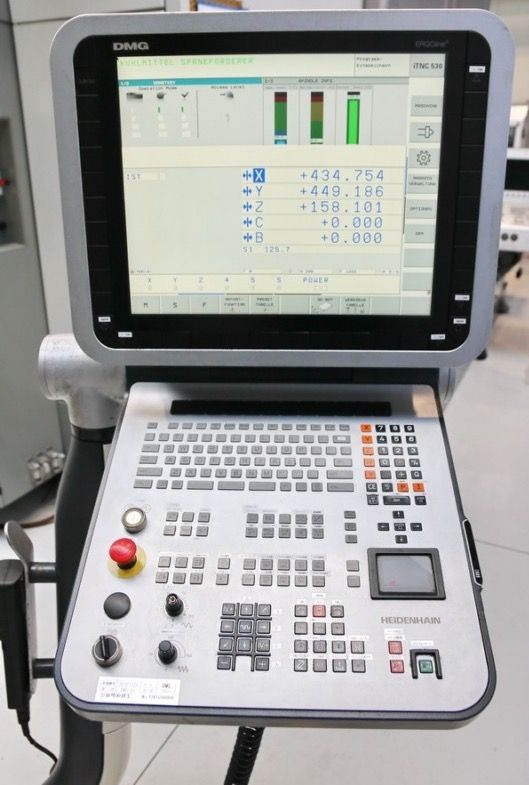

Control Heidenhain iTNC 530
Preparation probe

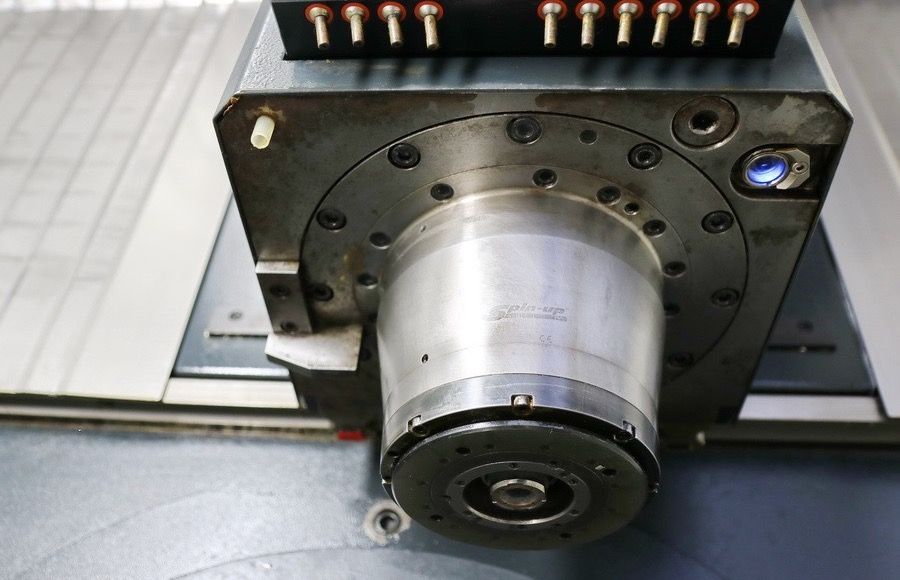

Main spindle speed 14000 rpm
Main spindle power 18.9 / 14 kW
Maximum torque 100 / 74 Nm
Tool taper HSK A63
Rapid traverse 24 m/min
Feed rate 1 – 24000 mm/min
Feed force 4.5 kN

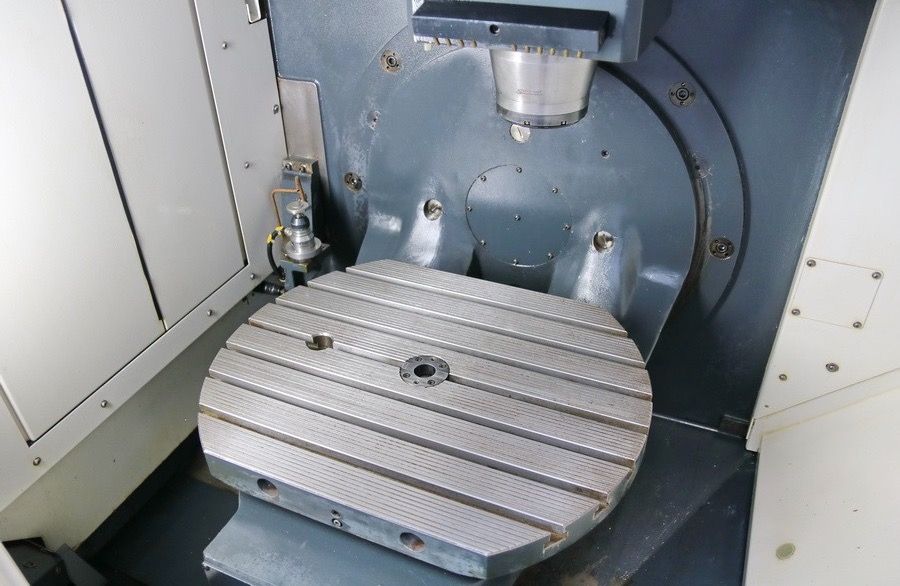

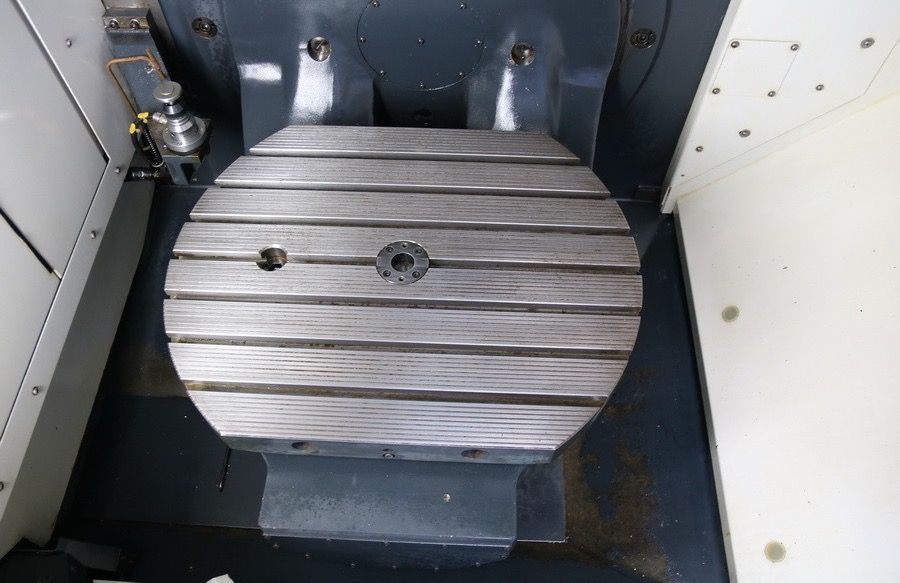

Table size 630 × 500 mm
Maximum table load 200 kg
T-slots 7 × 14 × 63 mm

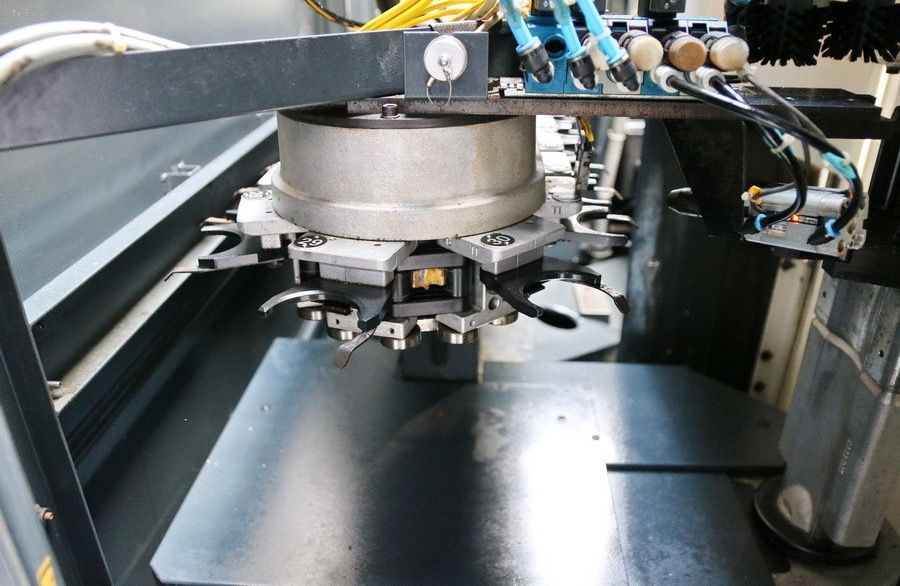

Tool magazine 30 positions
Maximum tool weight 6 kg
Maximum tool diameter 80 mm
Maximum tool diameter with free adjacent pocket 130 mm
Maximum tool length 300 mm
Chip conveyor
Chip tray
Coolant system
Electronic handwheel
Operation mode 4
Signal lamp 4 colour

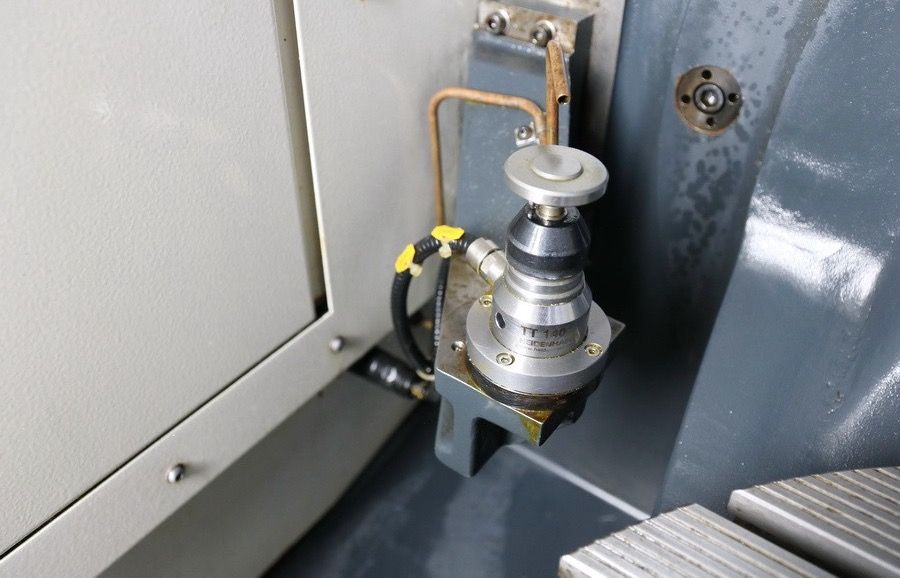

Tool setter Heidenhain TT 140
Total power requirement 26 kVA
Machine dimensions 3.5 × 3.5 × 2.8 m
Weight 5 t
