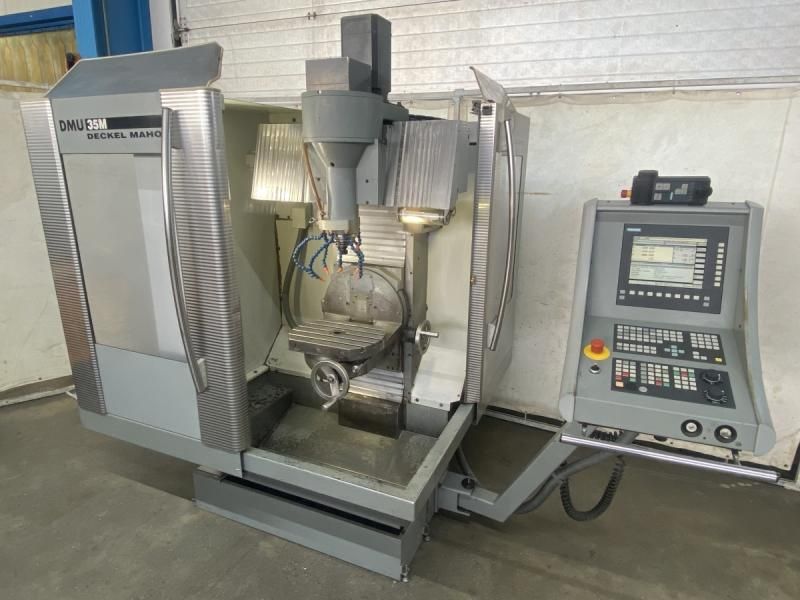

Deckel Maho DMU 35 M 5 Axis

X-axis travel 350 mm
Y-axis travel 240 mm
Z-axis travel 340 mm
C-axis 360°
B-axis +105° / −15°
Table size 400 × 290 mm
Table load max. 100 kg
Spindle nose to table 145–485 mm
Feed rate 5,000 mm/min
Rapid traverse (X/Y/Z) 5 m/min
Positioning increment 0.01 mm
Main spindle speed 20–6,300 rpm
Main spindle power 6.3 / 10 kW (100% / 40% duty)
Max. torque 55 / 80 Nm
Tool holder SK40 DIN 69871
Pull stud DIN 69872 / ISO 7388/2 Type B
Interface RS232C, LAN (RJ45)
Power requirement 15 kVA
Voltage 400 V, 50 Hz
Air supply 6 bar
Machine dimensions (L×W×H) 2000 × 2000 × 2100 mm
Machine weight 1750 kg

Equipped With
CNC control Siemens Sinumerik 810D with ShopMill
Direct measuring system for all 5 axes
Electronic handwheel
Swiveling control panel
Spindle drive via servo motor with toothed belt and 2 gear stages
Fully enclosed cabin with sliding door
Coolant nozzles on vertical head
Chip tray with coolant tank and pump
Working area lighting
Documentation included
