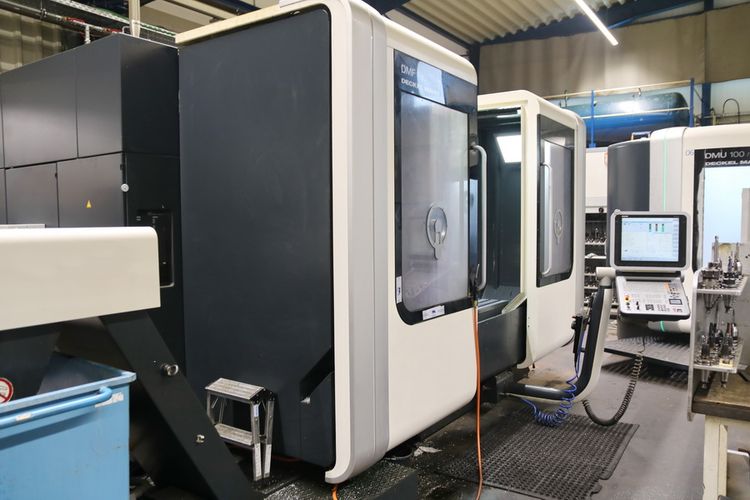

Deckel Maho DMF 180 NEW DESIGN 5 Axis

X Axis Travel: 1800 mm
Y Axis Travel: 700 mm
Z Axis Travel: 700 mm
B Axis: +/- 100°
C Axis: 360°
Control: iTNC 530 Heidenhain
Main Spindle Speed: 20 – 18,000 min⁻¹
Main Spindle Power: 25 / 35 kW
Main Spindle Torque: 130 / 87 Nm
Spindle Taper: HSK A63 DIN 69893
Table Surface Area: 2100 x 700 mm
Maximum Table Load: 500 kg
Number of T-Slots: 7
Rotary Table Diameter: 750 mm
Rotary Table Rotation: 360°
Number of Tool Positions: 30
Maximum Tool Weight: 6 kg
Maximum Tool Diameter: 80 mm
Maximum Tool Diameter with Free Adjacent Pocket: 130 mm
Maximum Tool Length: 300 mm
Tool Change Time (Chip to Chip): 7.6 sec
Rapid Traverse X/Y/Z: 40 m/min
Acceleration: 4 m/s²
Feed Speeds: Max. 40,000 mm/min
Feed Force X/Y/Z: 8 kN
Total Power Requirement: 70 kVA
Machine Weight: 13,000 kg
Machine Dimensions: 7.0 x 6.2 x 2.8 m
Chip Conveyor
Coolant System
Electronic Hand Wheel
Full Splash Guard
High Pressure Coolant 40 bar
Paper Band Filter
Rotary Screen 2x
Signal Light
Test Probe Heidenhain TS 649
