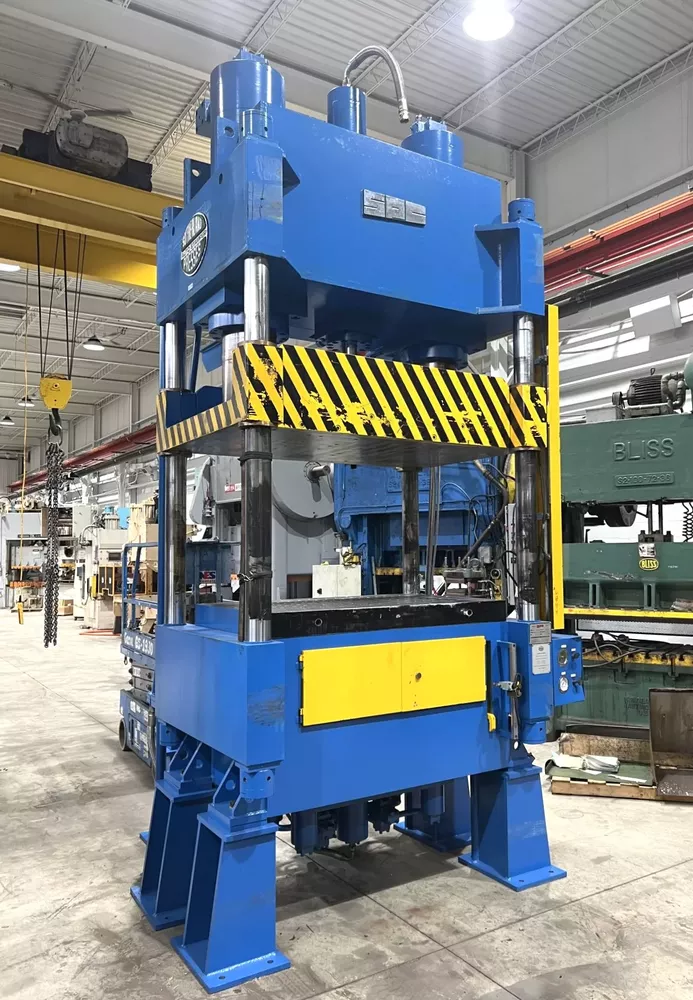

Dees HP-200 200 Ton

Stroke: 44"
Max. Daylight: 47"
Overall Bed & Ram Area: 73" x 39.375"
Distance Between Posts: 61" x 41.5"
Usable Bed Area: 61" x 39.375"
Bolster Plate Size: 59" x 39.375"
Bolster Plate Thickness: 4.75"
Closing Speed: 396 in/min
Pressing Speed: 36–69 in/min
Return Speed: 300 in/min
Floor to Bed Height: 57.625"
Cylinder Bore: 12.2" diameter
Ram Rod Size: 11.4" diameter
Post Size: 4.5" diameter
Press Controls: Allen-Bradley MicroLogix 1500 Controller
Interface: PanelView 550 Touchscreen
Main Motor Power: 40 HP
Electrical: 240/460V-3-60
Electrical Current: 92/46 Amps
Hydraulic Unit: Parker Hannifin T6DC-038-031-1R01-B1 Vane Pump
Machine Dimensions: 96" x 84" x 192"
Machine Weight: approx. 30,000 lbs
Cushion in Bed: 70 Ton
Cushion Stroke: 15"
Cushion Table Size: 47" x 31.5"
