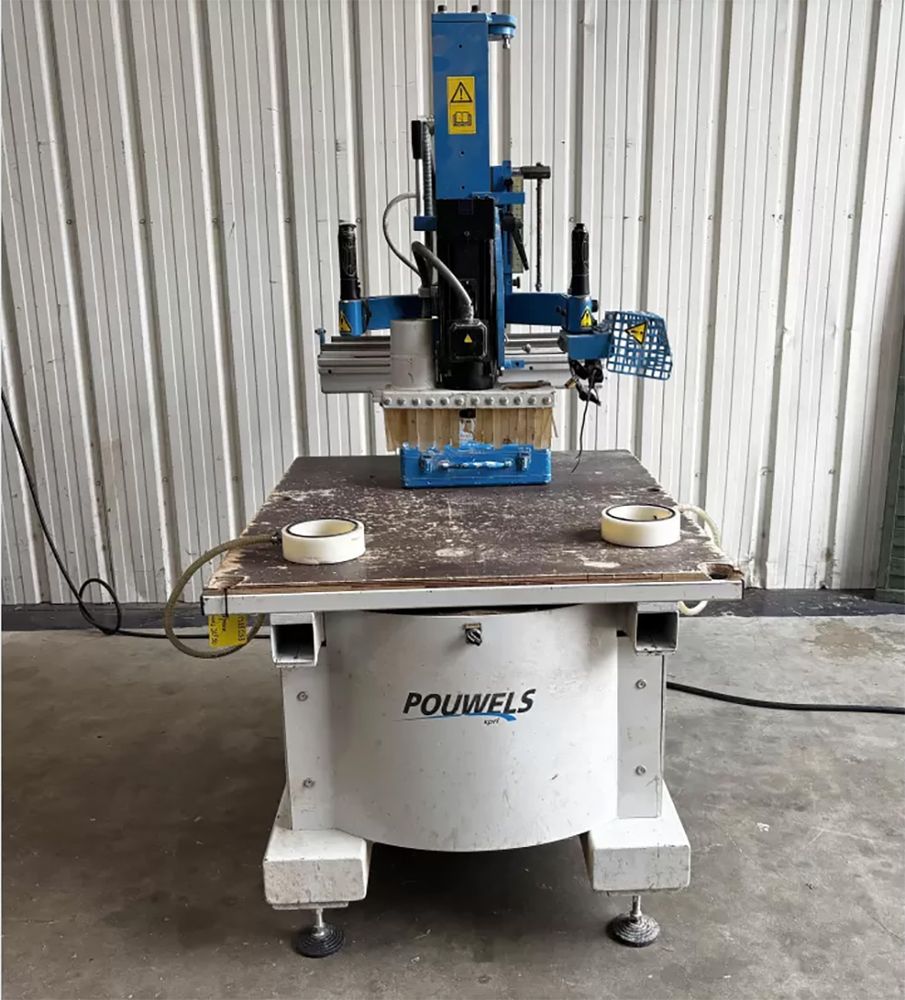

DEF 50 EVOLUTION 3 MILLING AND ROUTER

3-AXIS ROUTER/MILLING MACHINE WITH TILTING HEAD
MACHINING CAPACITIES :
- Vertical or horizontal milling and drilling
- Lateral grooving or drilling, motor tilt: 0-90°
- Chuck speed from 0 to 18000 rpm
- Movements, maximum strokes:
X-axis (length) 550 mm
Y-axis (width) 950 mm
Z-axis (height, thickness) 150 mm

OTHER FEATURES :
- Robust welded steel frame
- General power supply 380V, three-phase 50Hz, 10A input
- Engine power 4 kW (5 hp)
- Option features dual laser lines for tool positioning/thickness
- Tool fitting type: ER25 collet (ideally with a 16mm diameter shank)
- Adjustable depth stop to compensate for the tool
Pneumatic vertical stroke, 6 bar pneumatic supply
- Main table 1x1.20m
Height from the ground (working height) approx. 90cm
- 2 free-floating vacuum suction cups (4 connections at the edge of the table)
Integrated vacuum pump (1 hp) 8 m³/h

Aspiration:
- Top suction inlet Ø85 mm
Recommended flow rate: 2200 m³/h
- CE marking, lockable disconnect switch, emergency stop

Dimensions (LxWxH): 1 x 1.60 x 1.80 m
Weight 450 kg
