DEF 500 COPYING MILLING MACHINE WITH TABLE & TILT HEAD SEMI-AUTOMATIC MACHINE WITH COPYING OPTION

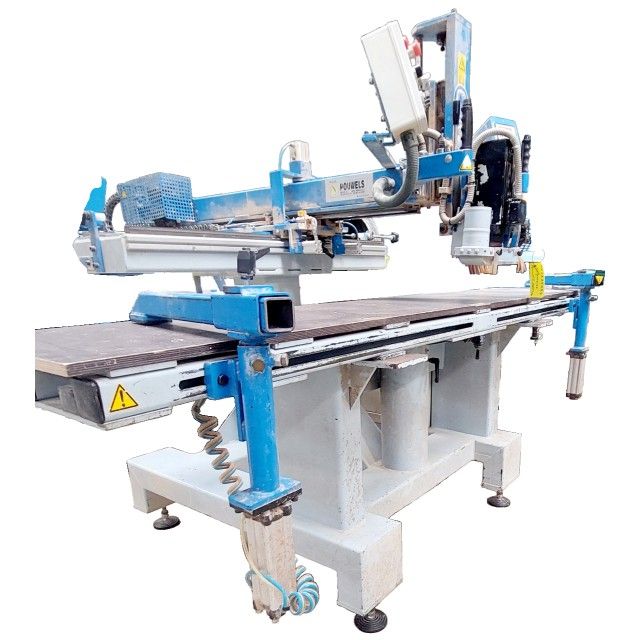

POUWELS 3-AXIS COPYING MILLING MACHINE WITH TABLE & TILT HEAD
SEMI-AUTOMATIC MACHINE WITH COPYING OPTION
Designed for milling straight and curved stringers or similar wooden parts.

MACHINING CAPACITIES:
- Vertical or horizontal milling and drilling
- Head (arm) rotation: -65/+65°
- Lateral grooving or drilling, motor tilt: 0-90°
- Chuck speed from 0 to 18,000 rpm
- Movements, strokes (digital display):
X axis (length): 1000 mm
Y axis (width): 900 mm
Z axis (height, thickness): 150 mm

OTHER FEATURES:
- Robust welded frame
- Rotary table 500 x 2450 mm with 2 pneumatic pressure gauges
Height from floor (working height): approximately 90 cm
- 380V power supply. Three-phase 50Hz IN 10A
- 4kW (5.44 hp) electrospindle motor
- ER25 collet tool connection type
- Dual laser lines for tool position/thickness available as an option
- Support for copying template and pneumatic finger
- 8 bar pneumatic supply

Suction:
- Upper suction inlet Ø80 mm
- Recommended flow rate 2100 m3/h
- CE marked, Padlockable disconnect switch, Mushroom head shut-off

Dimensions (LxWxH): 2.50 x 2.25 x H. 1.80 m
Weight 650 kg
