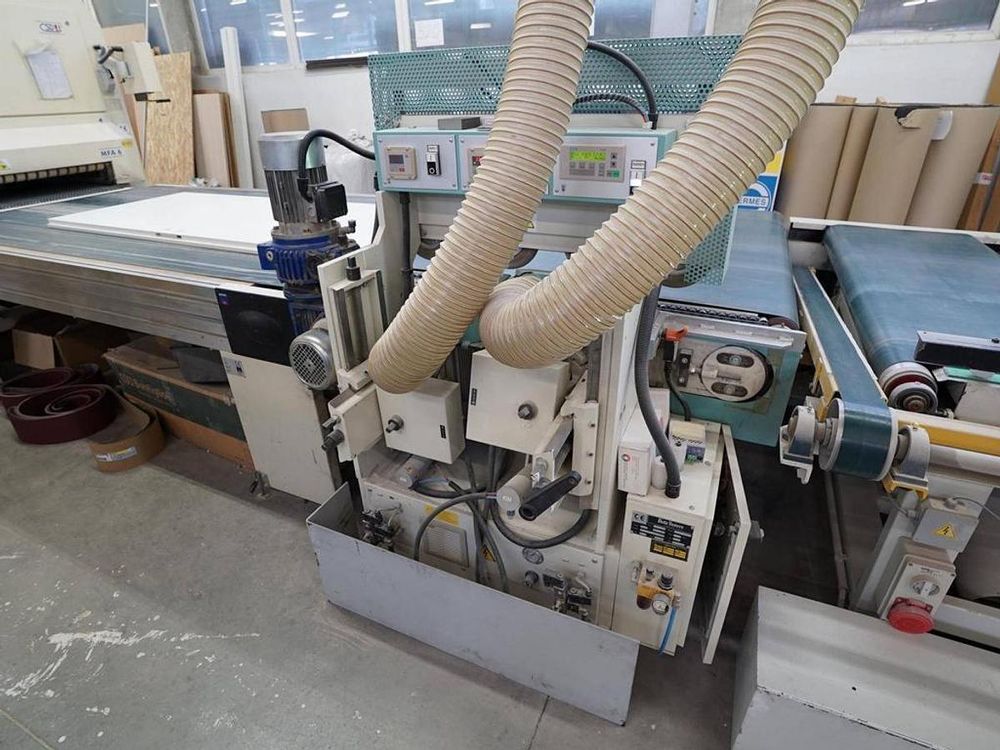

Delle Vedove LBK 2

Edge sanding machine
The right and left edges are sanded in one pass.
Two brush sanding heads are installed on the left and right.
Sequence:
1. the parts are conveyed via cross belts installed at 90 degrees to the feed direction to the right side as seen in the feed direction.
2. the right edge is sanded, 2 sanding brush heads are installed, which are adjustable in height and inclination.
3. the parts are conveyed to the left side at 90 degrees to the feed direction
The parts are conveyed to the left side as seen in the feed direction.
4. the left edge is sanded, 2 sanding brush heads are installed, which are adjustable in height and inclination.

- Part width: approx. 1,400mm
- Height of the sanding head: 80mm
- Sanding height: approx. 60mm
- Length: approx. 8,800mm
- Working height: 880mm
- Year of construction: 2002
- For the control of the material a new
Siemens S7-1200 is installed.
