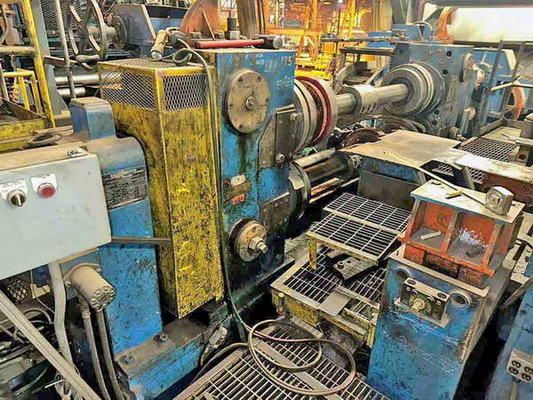

Delta Cut-to-Length Line

Coil capacity: 60,000 lb
Material width capacity: 72"
Material thickness capacity: 0.500"
Line direction: Right-to-Left

Coil car deck width: 52"
Maximum coil O.D.: 80"
Lift cylinder diameter: 9"
Lift cylinder length: 27"
Cradle height from floor: approx. 15"

Uncoiler mandrels: Solid non-expanding
Mandrel centerline to base: 45"

Pinch roll diameter: 10"
Pinch roll face width: 78"

Straightener work rolls: 9
Straightener roll diameter: 10"
Straightener roll face width: 78"
Straightener configuration: 4 over 5
Backup roll width: 14.5"

Leveler work rolls: 19
Leveler roll diameter: 2.5"
Leveler roll face width: 78"
Leveler configuration: 9 over 10

Material capacity: 0.500" x 72" mild steel
Line speed: 0 – 100 FPM
Drive power: 100 HP

Edge trimmer motor: 125 HP DC
Voltage: 500V
Motor speed: 1750 RPM
Current: 203 Amps
Reducer power: 102 HP
Reducer ratio: 1.0

Shear capacity: 0.500" x 72" mild steel
Pass height: 66"
Shear motor: 75 HP
Voltage: 230V

Runout tables: 2
Runout table length: 40'

L-type coil car
Self-contained hydraulic power unit
Cone type uncoiler
Sliding bases
Wichita brake
Feedup drive
Wichita clutch
Fully articulating peeler table
Side guides
Double stub edge trimming unit
Scrap chopper
Paddle type chopper
Single rake shear
Down acting shear
Entry driven pinch rolls
Exit driven pinch rolls
Runout tables on rails
Operator console
145 KVA isolation transformer
