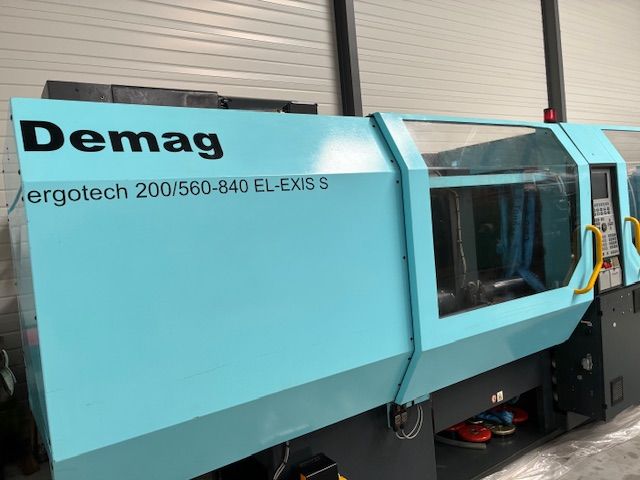

Demag 200T / 840 EL EXIS S NC4 200 T

Injection Unit
Screw Diameter: 50 mm
Calculated Injection Volume: 442 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Rate: cm3/s
Material Pressure: 1946 bar

Clamping Unit
Clamping Force: 2000 kN
Opening Stroke: 575 mm
Minimum Mold Thickness: 310 mm
Maximum Distance Between Platens: 1235 mm
Passage Between Columns: 560 x 560 mm
Plate Dimensions: 830 x 830 mm

General
Oil Quantity: 500 L
Dimensions: 5.7 x 2.2 x 1.7 m
Weight: 10,950 kg

Other
Commissioned: 2003
Tonnage: 200
