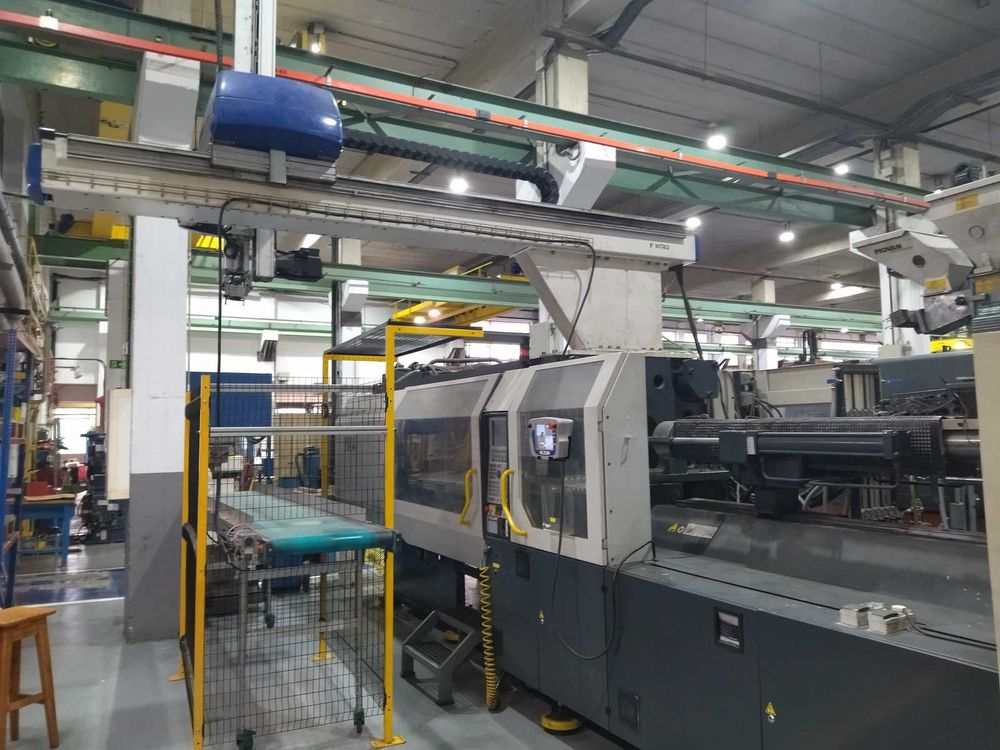

Demag Eegotech 420 / 810 - 2300 420 T
Ref :
2764330-6-GO
Condition :
Used
Manufacturer :
Demag
Model :
Eegotech 420 / 810 - 2300
Capacity :
420 T
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 4.200 kN
Daylight between platens max 1.530 mm
Dimensions (long x wide x high) 7.800 x 2.200 x 2.400 mm
Distance between tie-bars (h x v) 810 x 710 mm
Ejector force 96 kN
Ejector stroke / force max. 230 / 96 mm / kN
Injection pressure 1.877 bar
Injection volume 1.212 cm³
Mould height max 820 mm
Mould height min 380 mm
Mould opening stroke max 710 mm
Nozzle stroke / force max. 620 / 110 mm / kN
Nozzle stroke max 620 mm
Oil tank capacity 730 l
Platen size (h x v) 1.200 x 1.100 mm
Power: installed max 72 kW
Screw diameter 70 mm
Screw L/D ratio 20
Shot weight max 1.090 g
Weight 20.000 kg
