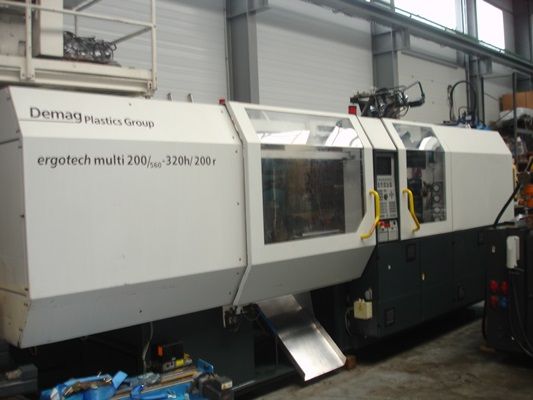

Demag Ergotech Multi 200/560-320H200R 200 T

Ref : 2780576-6-GO

Condition : Used

Manufacturer : Demag

Model : Ergotech Multi 200/560-320H200R

Capacity : 200 T

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Number of hours: 50,000 hours

Closing unit
Closing force: 200T
Passage between columns: 560 x 560mm
Dimensions of the Trays: 830 x 830mm
Opening race: 560 x 560mm
Minimum-maximum mold thickness: 310 - 660mm

Injection unit
Screw diameter: 30-30mm
Injection pressure: 2420-2400 bar
Injectable volume: 124-106cm3

Others
Control command: NC4
Mold heating zone: 16
Number of nuclei: 4
Robot interface: YES
Air blowers: 1
Dimensions (L x W x H): 5700 x 1700 x 2200mm
Weight : 12000kg

Nozzle spacing: 150 mm.
Can be equipped with a DEMAG (WITTMANN) robot.
