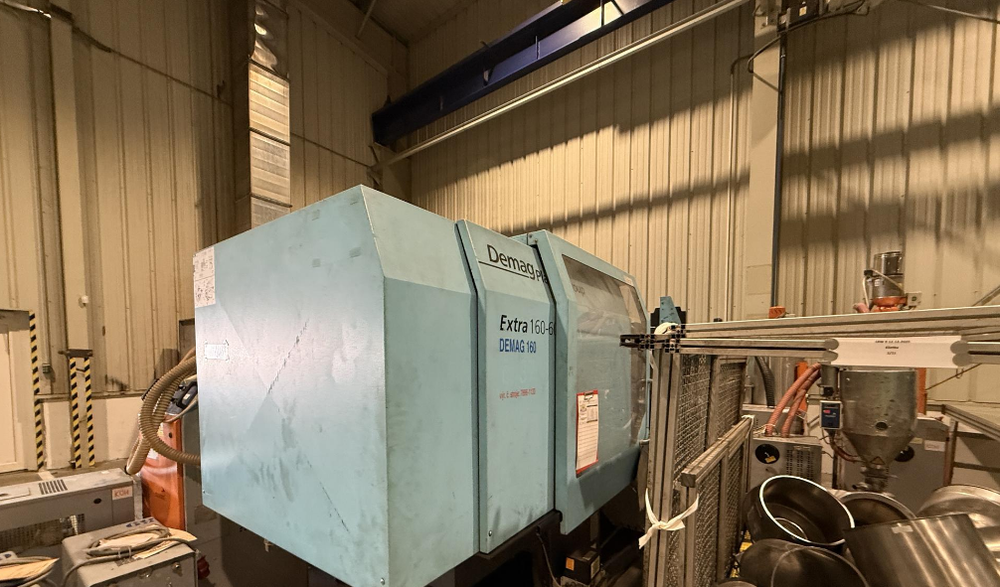

Demag Extra 1600-600 160 T
Ref :
2788271-6-AW
Condition :
Used
Manufacturer :
Demag
Model :
Extra 1600-600
Capacity :
160 T
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Clamping Unit
Clamping Force: 1600 kN (approximately 160 tons).
Tie Bar Spacing: 520 mm x 520 mm.
Platen Dimensions: 770 mm x 770 mm.
Mold Height: Minimum 275 mm to a maximum of 585/685 mm.
Opening Stroke: 500 mm.
Maximum Opening Width (Daylight): 1085 mm.
Injection Unit
Screw Diameter: 45 mm.
Injection Pressure: 1910 bar (some variants list 1600 bar).
Injection Volume: 291 cm³ to 293 cm³.
Shot Weight: 259 g (PS) to 291 g.
Electrical & Physical Data
Pump Motor Power: 22 kW.
Heating Capacity: 11.3 kW.
Machine Dimensions (LxWxH): 5.3 m x 1.5 m x 2.0 m.
Machine Weight: Approximately 6,400 kg to 6,500 kg.
