Demag IntElect 100/470-180 NC5 100 T

Clamping unit
Clamping force100 ton
Opening stroke380 mm
Distance between tie bars470 x 420 mm
Mould height min.200 mm
Mould height max.430 mm
Platen size (h x v)690 x 620 mm

Injection unit
Screw diameter35 mm
Injection volume115 cm³
Shot weight103 g
Injection pressure1600 bar

Measurements and weight
Dimensions4,8 x 1,4 x 2,2 m
Machine weight5500 kg

Additional information & extras
Core pull1 pcs

Additional Information:
The Sumitomo (SHI) Demag IntElect series is a high-precision
all-electric injection moulding machine platform developed for technical plastic parts,
automotive applications, electronic components, and demanding serial production processes.

All main machine movements are driven by direct-drive servo electric motors.
Injection, dosing, clamping, and ejector movements are performed entirely
by electric drive technology, ensuring extremely precise motion control,
excellent repeatability, and maximum process stability.

The IntElect series is especially recognized for its low energy consumption
and outstanding production precision. Compared to conventional
hydraulic injection moulding machines, energy savings of approximately 60% up
to 80% can be achieved depending on the application.
In addition, the reduced heat generation lowers cooling requirements
and overall operating costs.

The machine is equipped with a direct servo injection and dosing system,
allowing very fast response times and highly accurate injection control.
The injection unit features 4 heating zones,
providing homogeneous plasticizing performance and stable processing conditions,
especially for technical engineering materials.

Key advantages of the IntElect series:
* All-electric direct-drive servo technology
* Extremely low energy consumption
* High precision and process repeatability
* Quiet and low-vibration operation
* High dynamic servo performance
* Low maintenance requirements
* Clean production environment
* Ideal solution for technical and precision plastic parts
* Suitable for high-speed serial production

The Sumitomo Demag IntElect series is still considered one of
the most reliable and efficient all-electric injection moulding machine
platforms on the market thanks to its long service life, stable production performance,
and excellent energy efficiency.

The machine was in active production until dismantling and is in working condition.

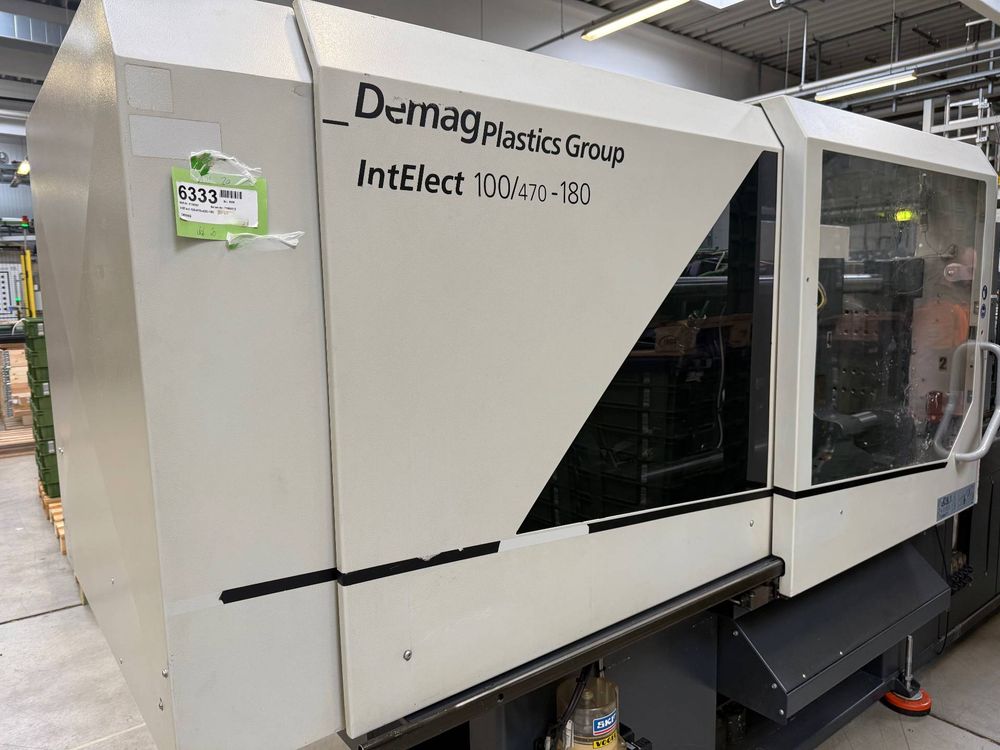

As visible in the pictures, the machine is clean and well maintained.
