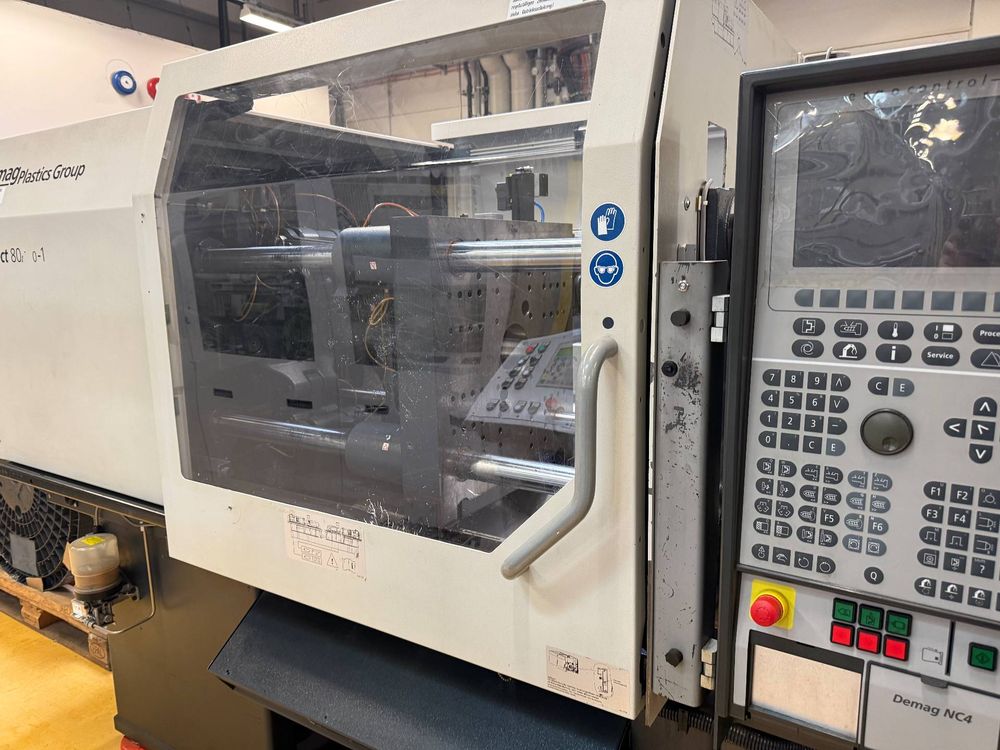

Demag IntElect 80/370-100 NC4 All Electric 80 T

Clamping unit
Clamping force 80 ton
Opening stroke 340 mm
Distance between tie bars 370 x 370 mm
Mould height min. 150 mm

Injection unit
Screw diameter 22 mm
Injection volume 39 cm³
Shot weight 35 g
Injection pressure 2500 bar

Measurements and weight
Dimensions 4,3 x1,3 x 2,3 m
Machine weight 4750 kg

Additional Information:
A Technology That Stands Out in Energy Efficiency: Less Energy, Higher Precision
The Demag IntElect series is one of the pioneering machines that
introduced all-electric drive technology to the plastic injection moulding industry
in the late 2000s. Unlike conventional hydraulic systems where pumps and
cooling circuits run continuously, the IntElect's servo drive only activates
when movement is actually required. This fundamental difference delivers
50 – 70% energy savings compared to hydraulic machines,
dramatically reducing annual operating costs.

Motor System — Siemens MOTICS 3
Main Drive Motor · Water-Cooled Servo Motor
The main drive unit that controls all clamping and
injection movements with high precision.
Plasticising Motor · Water-Cooled Servo Motor
Based on the same Siemens MOTICS 3 platform,
this motor melts material homogeneously through
precise speed and torque control; its water-cooled
design ensures stable operation during long-term intensive production.

5-Axis Full Servo Control
The machine is equipped with 5 independent servo motors.
Clamping, injection, screw retraction, ejector and plasticising
axes all operate under full servo control.
Since each axis can be programmed independently,
all movements can be executed simultaneously.
This architecture delivers micron-level repeatable precision,
shorter cycle times and minimum mechanical loss compared to hydraulic systems.

NC4 Control System
The keyboard-based NC4 system manages all machine parameters
— including injection profile, mould protection and cycle analysis
— from a single screen.
