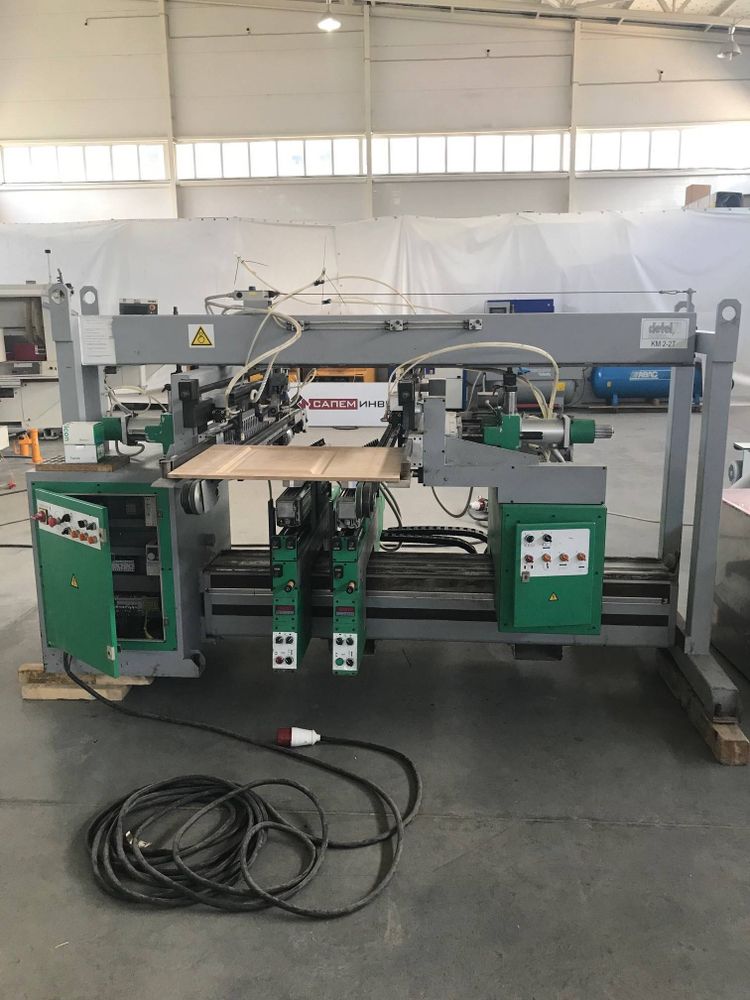

Detel KM 2-2T-CE

Number of horizontal spindles 22 + 22
Number of vertical spindles 2 x (11+11)
Distance between spindles, mm 32 mm
The distance between the first and last spindle is 672 mm
Max. drilling depth of vertical head 50 mm
Max. drilling depth of horizontal head 50 mm
Spindle speed, rpm 2850
Minimum distance between vertical drilling heads along axes 96 mm
Max. distance between horizontal drilling heads 1230 mm
Power of horizontal head motors 2x1.4 kW
Vertical head motor power 4x1.1 kW
Machine dimensions, mm 2590x2000x1551
Machine weight, kg

The industrial machine is designed for horizontal and vertical drilling of panels and other furniture elements for medium and large-scale production.
The machine operates in throughput mode.
The machine is used both separately and as part of production lines.

Horizontal drilling - 2 carriages with 22 spindle heads.
Vertical drilling - 2 carriages with 22 (11 + 11) spindle heads.

The machine design ensures quick setup, precise adjustment of the carriages and drilling heads position, high productivity:
- vertical carriages have electromagnetic size reading sensors with electronic indicators;
- each spindle is equipped with quick-release tool mounts of the BAYONET type.
- vertical carriages rotate by 0 and 90 degrees.

The carriages can be equipped with various types of heads - for hinges, combined, etc.
Drilling accuracy: +/- 0.15 mm.
