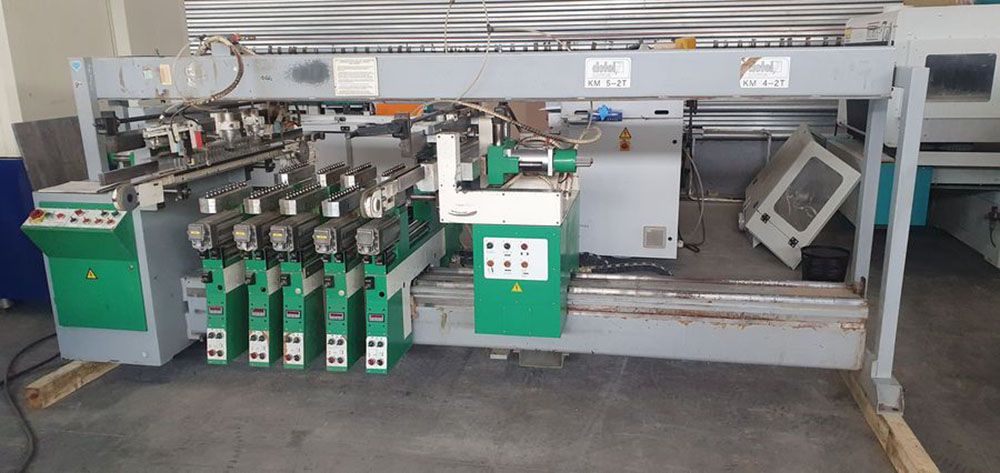

Detel KM 5/2

Technical specifications :
Number of horizontal spindles 22 + 22
Number of vertical spindles 5 x (11+11)
Distance between spindles, mm 32 mm
Max. panel length 2300 mm
Max. panel width 790 mm
Min. panel width with clamping cylinders 130 mm
Min. drilling width between 2 horizontal units 200 mm
Max. beam center distance 640 mm
Min. center distance between screw heads 96 mm
Max. distance between horizontal heads: 2400 mm
Max. drilling depth of vertical head 50 mm
Max. drilling depth of horizontal head 50 mm
Spindle speed, rpm 2850 mm
Power of horizontal head motors 2x1.4 kW
Vertical head motor power 10x1.1 kW
Machine dimensions: 3890x2000x1582 mm
Machine weight, kg 2900 kg
