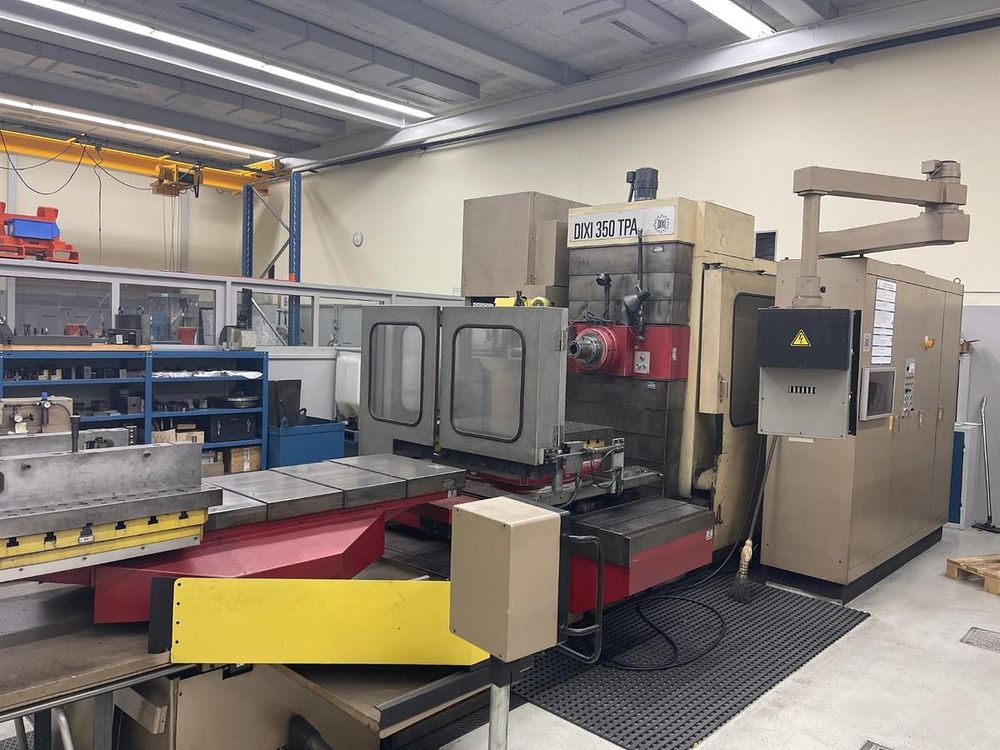

Dixi 350 TPA 3000 rpm

X-axis travel: 1000 mm
Y-axis travel: 1000 mm
Z-axis travel: 1000 mm
Table rotation: 360° continuous
Rapid traverse rotary table: 1500°/min
Control: DIXI CNC 4400
Table size: 840 x 1000 mm
Max. table load: 2000 kg
Tool holder: ISO 50
Spindle speed: 8 – 3000 rpm
Spindle power: 11 kW
Spindle power overload: 13.75 kW
Max. torque: 200 kpm
Feedrate X/Y/Z: 1 – 9999 mm/min
Rapid traverse X/Y/Z: 9999 mm/min
Resolution: ±0.001 mm / 0.001°
Positioning accuracy: 0.001 mm / 0.001°
Compressed air requirement: 6 bar
Total power: 47 kW
Weight: 17 t
Machine dimensions: 4835 x 4160 x 3190 mm
Distance table axis to spindle flange: 390 – 1390 mm
7 T-slots
T-slot width: 18 H7
Pallet changer
Vibration-reduced machine bed
Cross-table arrangement
Vertical Z-axis
Lapped sliding guides
High-precision linear guides
