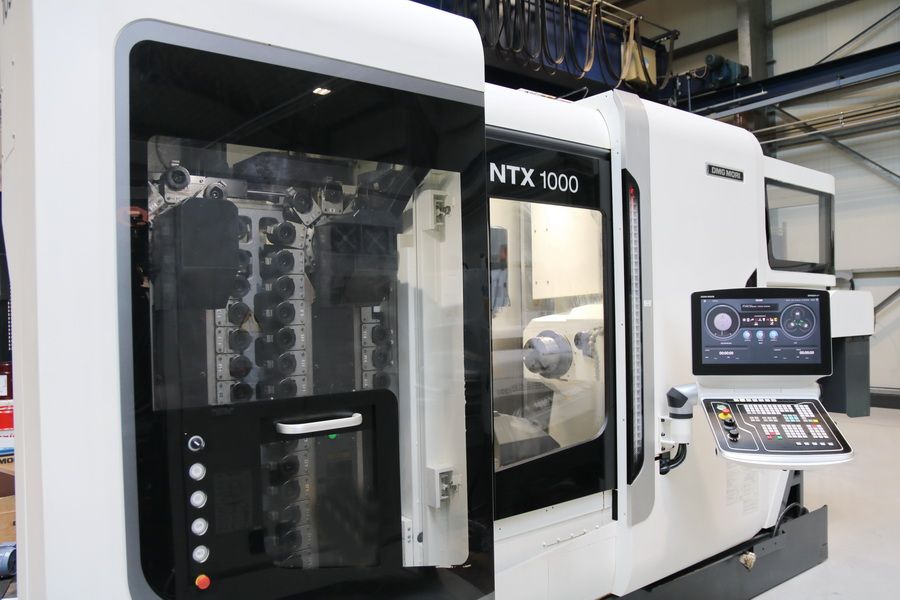

DMG CELOS ErgoLine Siemens 20000 rpm MORI SEIKI NTX 1000 SZM 2nd 4 Axis

X axis travel: 455 (-105 / +350) mm
Y axis travel: ±105 mm
Z axis travel: 800 (+165) mm
B axis: -30° / +210°

Control: CELOS ErgoLine Siemens
Max bar capacity: 65 / 52 mm
Max swing diameter: 450 mm
Max turning diameter: 430 / 274 mm
Max turning length: 800 mm
Main spindle speed: 20000 rpm
Main spindle power: 26 / 18.5 kW
Sub spindle power: 22 / 18.5 / 15 kW
Milling spindle power: 9 / 5.5 kW
Milling spindle torque: 49.4 / 21.9 Nm
Milling spindle taper: Capto C5
Max speed driven tool stations: 10000 rpm
Tool positions: 76
Square tool shank height: 20 mm
Max tool diameter: 70 mm
Max tool diameter with free toolbox: 130 mm
Max tool length: 250 mm
Max tool weight: 5 kg
Rapid traverse B axis: 100 min⁻¹
Rapid traverse C axis: 250 min⁻¹
Total power requirement: 44 kVA
Machine weight: 10 t
Machine dimensions: 5.5 x 4.0 x 3.0 m

New milling spindle
New linear guides
New ball screws and bearings
New counter spindle
New turret
3x Kitagawa BB206, B208, BB208 chucks
5 axes simultaneously
Main and counter spindle
Tool milling spindle
Lower turret with tool drive
Comprehensive spare parts package
Headstock with additional milling spindle
Hydraulic unit
Foot switch
Original sealed spare parts
3x pumps
1x rotary joint for spindle
1x draw bar set C5
1x cylinder cartridge C5
Automatic front door
C axis
Chip conveyor
Coolant system
Documents
Hydraulic system
Milling spindle
Parts catcher
Parts removal
Signal lamp - 4 colour
Tool magazine 2x38
Turret
