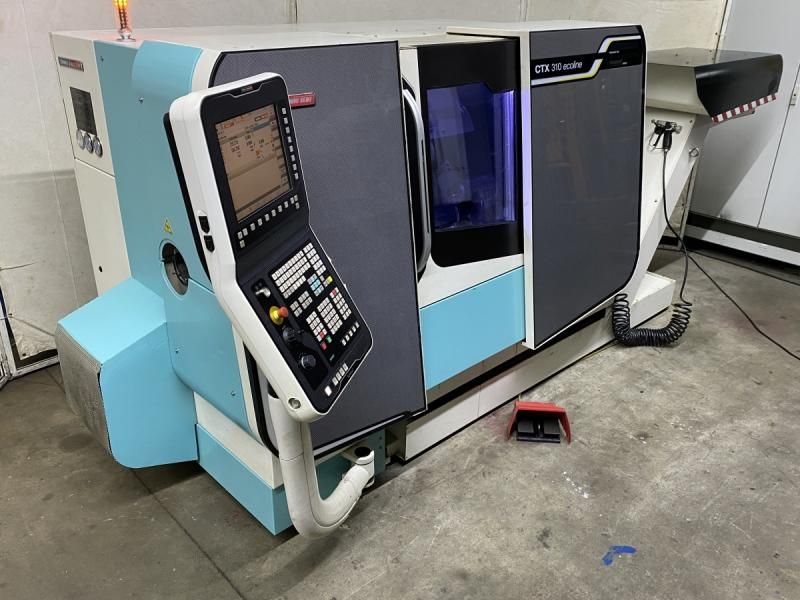

DMG, Mori Seiki Control SIEMENS Sinumerik 840D sl 5000 rpm CTX 310 ecoline 2 Axis

X-Axis Travel 160 mm
Z-Axis Travel 450 mm
Rapid Traverse X-Axis 30 m/min
Rapid Traverse Z-Axis 30 m/min
Feedrate X and Z 0 – 30000 mm/min
Controlled C4-Axis
Controlled C1-Axis
Control SIEMENS Sinumerik 840D sl
System Software NCU V04.04+SP02+HF02
Indirect Measuring System via Rotary Encoder
Workpiece Remaining Time Display
Parts Counter Large Display
Swing Over Bed Cover 330 mm
Swing Over Cross Slide Cover 260 mm
Center Height 190 mm
Distance Between Centers 580 mm
Max Turning Diameter 200 mm
Spindle Bore in Draw Tube 51 mm
Spindle Bore in Front Bearing 100 mm
Spindle Speed Max. 5000 rpm
Spindle Motor Power 11 kW (100% ED)
Spindle Motor Power 16.5 kW (40% ED)
Turret 12 Stations
Driven Tool Stations 6
Tool Holder Cylindrical VDI 30 mm
3-Jaw Chuck AUTOGRIP Ø 210 mm
1 Set Hard Jaws
15 Sets Soft Jaws
Hydraulic Hollow Clamping Device AUTOGRIP
Tool Turret SAUTER Type 0.5.901.020
20 Tool Holders VDI 30
Tailstock MK 4
Chip Conveyor with Integrated Coolant System
Electrical Cabinet Cooling Unit
Total Operating Hours 9716 h
Spindle Hours 3322 h
Machine Footprint with Chip Conveyor 4500 x 2600 x 2050 mm
Machine Base Footprint 2900 x 2150 x 2050 mm
Chip Conveyor Dimensions 3350 x 850 x 1650 mm
Machine Weight 3200 kg
Chip Conveyor Weight 500 kg
Total Weight Approx. 4 t
