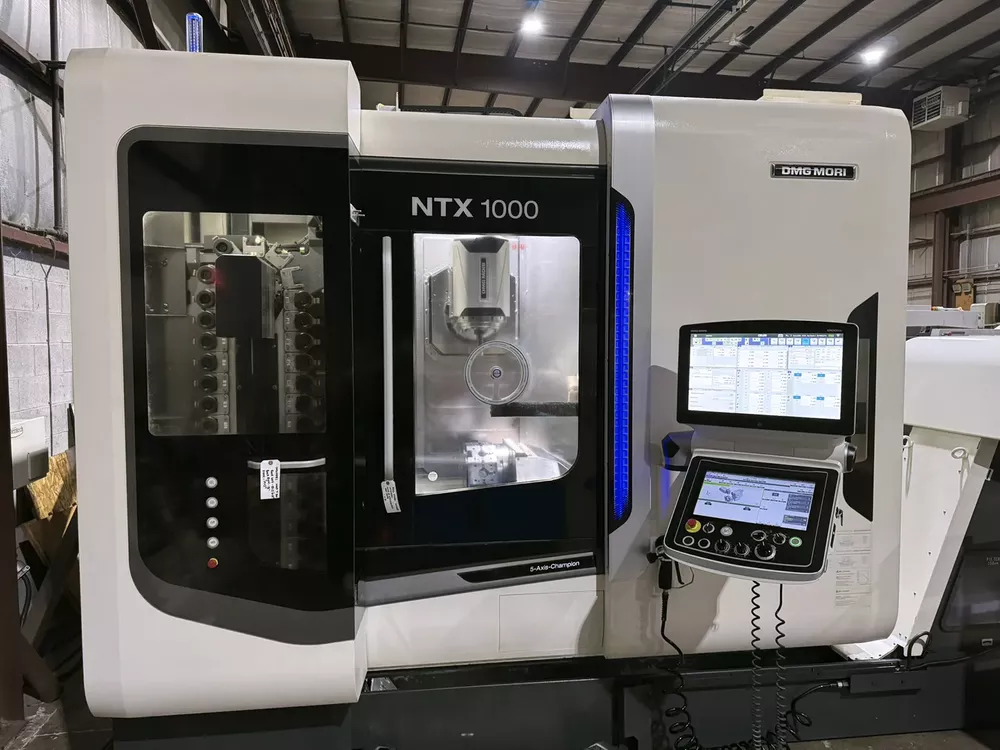

DMG CELOS Fanuc F31i B5 20,000 RPM Mori NTX 1000 7 Axis

X1-axis travel: 17.9"
Y-axis travel: ±4.53"
Z1-axis travel: 31.4"
X2-axis travel: 6.2"
Z2-axis travel: 28.7"
X rapid traverse rate: 1574.8 IPM
Y rapid traverse rate: 1574.8 IPM
Z rapid traverse rate: 1968.5 IPM
B-axis travel: 240°
C-axis: 360° (0.001)

Control: CELOS Fanuc F31i B5
Max bar capacity: 2.6"
Swing over cross slide: 17.7"
Max turning diameter: 16.9"
Max turning length: 31.5"
Distance between spindles: 41.3"

Milling spindle speed: 20,000 RPM

8" main chuck
6" sub-spindle chuck
10-station lower turret

Features / Equipment

Fanuc F31iB5 with CELOS CNC control
20000 RPM B-axis milling head
38-station tool magazine
Full C-axis on main and sub-spindle
Y axis capability
8" main chuck
6" sub spindle chuck
10 station lower turret
Interface for bar feeder
Renishaw probe
Blum laser tool setter/monitor
3D Quick SET
Mist collector
Rigid tapping
High pressure coolant system
