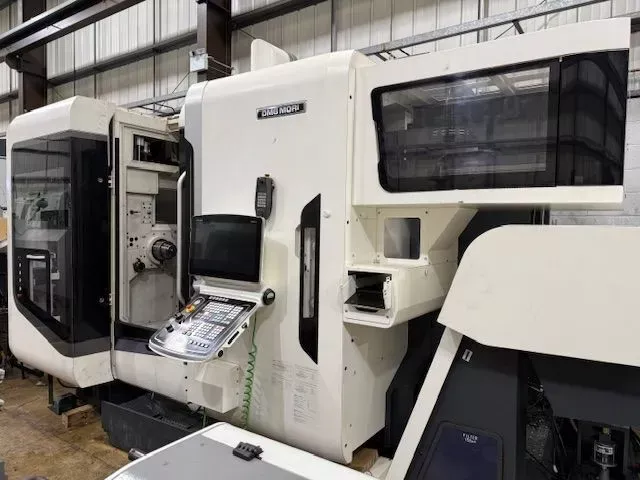

DMG CELOS / Siemens 840D SL 5,000 RPM MORI NTX 1000SZM 5 Axis

X1-axis travel: 15"
X2-axis travel: 6.1"
Y1-axis travel: 8.2"
Z1-axis travel: 24.2"
Z2-axis travel: 24"

B-axis head travel: ±120°
B-axis indexing: 0.0001°
C-axis indexing (1): 0.0001°
C-axis indexing (2): 0.0001°

Main spindle chuck size: 8"
Main spindle nose: A2-6
Main spindle bore: 2.9"
Main spindle bar capacity: 2.5"
Main spindle speed: 5,000 RPM
Main spindle power: 15 hp

Sub spindle chuck size: 8"
Sub spindle nose: flat
Sub spindle bore: 1.9"
Sub spindle bar capacity: 1.5"
Sub spindle speed: 6,000 RPM
Sub spindle power: 10 hp

Milling spindle taper: CAPTO C5
Milling spindle speed: 20,000 RPM
Milling spindle power: 12 hp
ATC capacity: 76 tools

Rapid traverse X1: 1574 IPM
Rapid traverse X2: 787 IPM
Rapid traverse Z1: 1968 IPM
Rapid traverse Z2: 1417 IPM
Rapid traverse Y1: 1574 IPM

Turret stations: 10
Machine weight: 19,800 lb
Control: CELOS / Siemens 840D SL

Dual spindle multitasking system
Hydraulic bar feed system
Chip conveyor
Tool presetter system
High-pressure coolant system (through B-axis interface)
Workpiece unloader system
Workpiece ejector system
Renishaw probing system
Tool breakage detection system
Oil mist separator
Coolant gun
Signal tower light (4-color)
