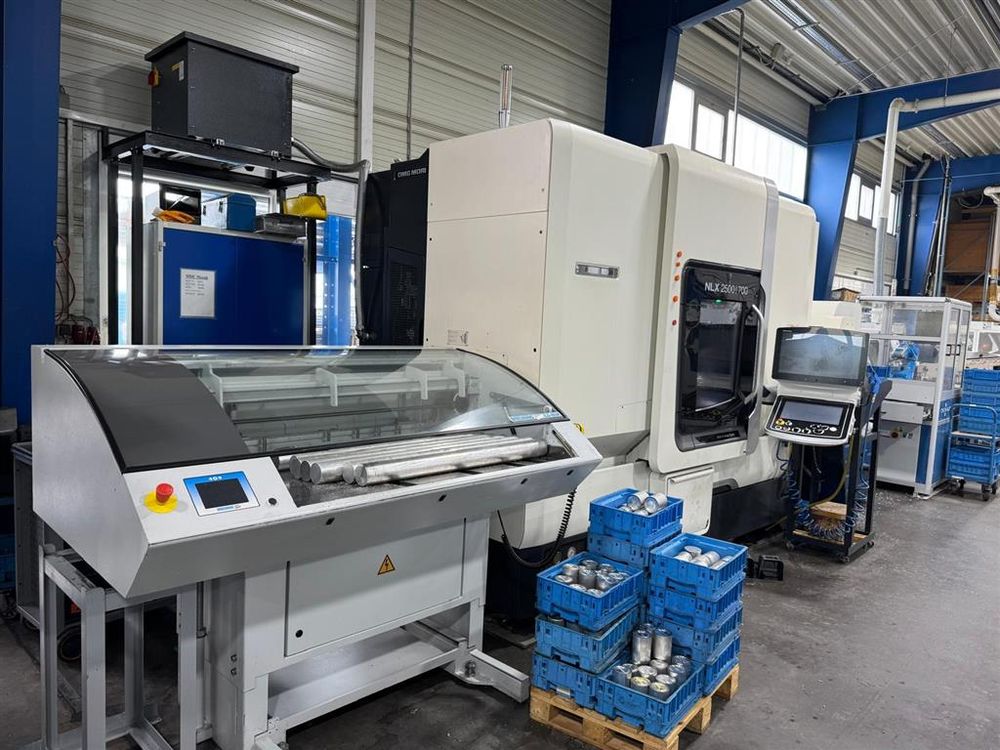

DMG CELOS M730 UM MAPPS 4000 rpm MORI NLX 2500 SY / 700 4 Axis

Turning diameter: 356 mm
Turning length: 705 mm
Travel X: 260 mm
Travel Y: ±50 mm
Travel Z: 795 mm
Rapid traverse X: 30 m/min
Rapid traverse Z: 30 m/min
Rapid traverse B axis: 734 m/min
Control: CELOS M730 UM MAPPS
Y axis
Sub spindle
Chip conveyor
Barfeeder interface
Parts catcher
Automatic door
Program restart
Tool presetter
Coolant system
Coolant through spindle: 70 bar
Coolant through subspindle
Coolant shower
Air blow to tool tip
Polygon turning option
Additional M functions: 10
Main spindle speed: 4000 rpm
Main spindle power: 15 / 18.5 / 18.5 kW
Main spindle torque: 409 / 505 / 599 Nm
Main spindle bar capacity: 80 mm
Sub spindle speed: 4500 rpm
Sub spindle power: 7.5 / 11 kW
Driven tools speed: 10000 rpm
Driven tools power: 3.7 / 5.5 / 5.5 kW
Driven tools torque: 14 / 24 Nm
Turret stations: 20
Rotary tool stations: 20
Tool interface: BMT40
Chuck spindle 1: 250 mm
Chuck spindle 2: 160 mm
Total power: 38 kVA
Machine weight: 6.3 t
Machine dimensions: 4000 x 2100 x 2200 mm
