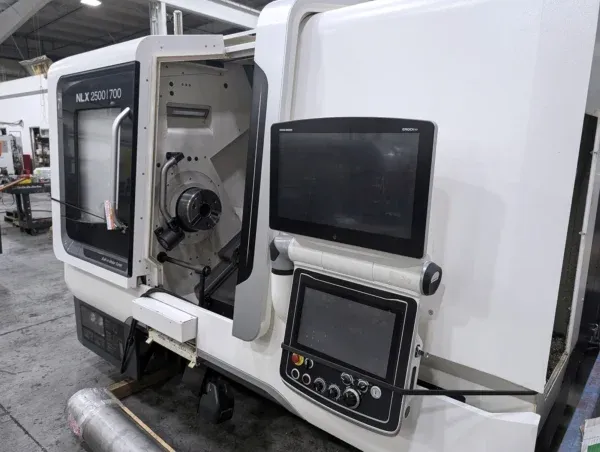

DMG Control Mitsubishi M730UM with CELOS (MAPPS V) 4,000 RPM MORI NLX-2500SY/700

X-Axis Travel 10.2"
Z-Axis Travel 31.3"
Y-Axis Travel ±2.0"
Rapid Traverse Rate 1,181 IPM (X/Z)

Bar Capacity 3.15"
Swing Over Bed 36.2"
Swing Over Cross Slide 29.2"
Max Turning Diameter 14.4"
Max Turning Length 27.7"

Main Spindle Speed 4,000 RPM
Main Spindle Nose A2-8
Main Spindle Bore 3.58"
Sub Spindle Speed 5,000 RPM
Sub Spindle Nose A2-6
Sub Spindle Bore 2.87"

Rotary Tool Spindle Speed 10,000 RPM
Rotary Tool Torque 29.5 / 22.1 / 10.3 ft-lbs

12-Station BMT Turret
12" Kitagawa Hydraulic Chuck (Main)
8" Kitagawa Hydraulic Chuck (Sub)

Machine Dimensions 131.8" x 82.9"
Machine Weight 13,500 lb

High-Pressure Coolant System 116 PSI
Coolant Tank Capacity 96.6 gallons
Hinge-Type Chip Conveyor (Right Discharge)
Coolant Gun
Built-In Parts Catcher / Workpiece Unloader
Workpiece Conveyor System
Bar Feeder Interface
Tool Presetters
MPG Handwheel
